To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD1238B24T9-87C |

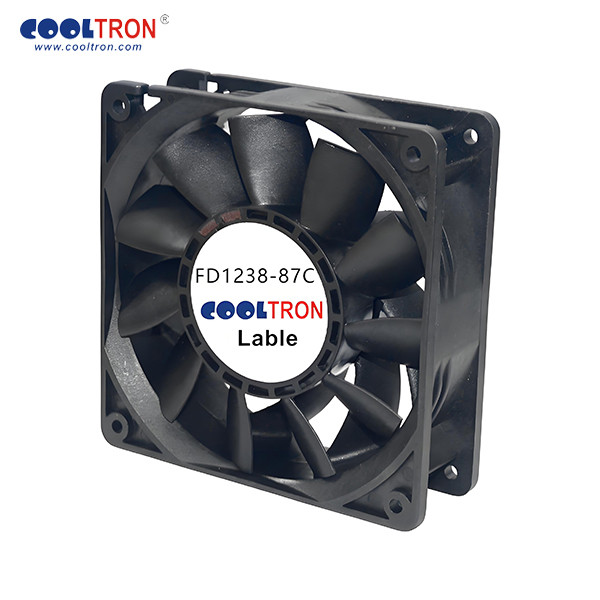

| Description | DC Axial Fan; 120x120x38mm; 24 VDC;269.80(cfm); 70.90(dBA); Dual Ball; Terminal; PBT 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 120x120x38mm • Bearing: Dual Ball • Voltage: 24 VDC • Lead Type: Terminal • Air Flow (CFM): 269.80 • Static Pressure: 44.90 • Noise (dBA): 70.90 • Speed (RPM): 6,200
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 120x120x38mm |
| Bearing | Dual Ball |
| Voltage | 24 VDC |
| Lead Type | Terminal |
| Speed | High High |
| Special Functions | - |
| Connectors | With Connector |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 5%-90%RH) |
| Storage Temp: | -40℃~80℃(Humidity 5%-95%RH) |
| Lead Wire: | UL Type #22 AWG |
| Operating Voltage | 14.0~26.4 |
| Air Flow (CFM) | 269.80 |
| Static Pressure | 44.90 |
| Noise (dBA) | 70.90 |
| Speed (RPM) | 6,200 |
