To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD1232S24T7-61 |

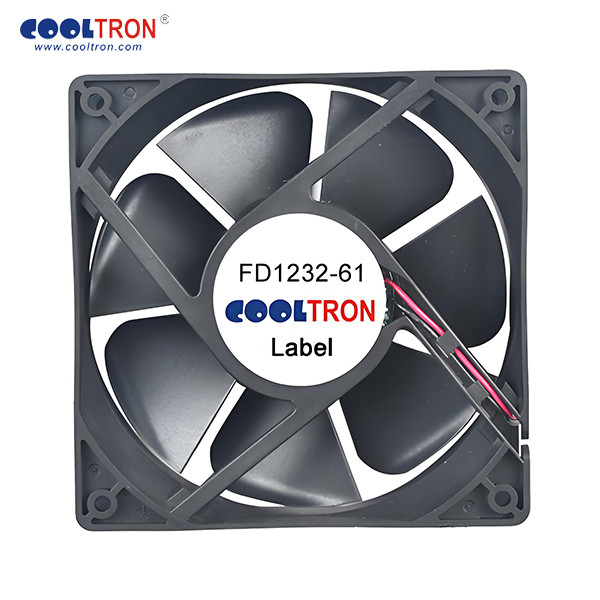

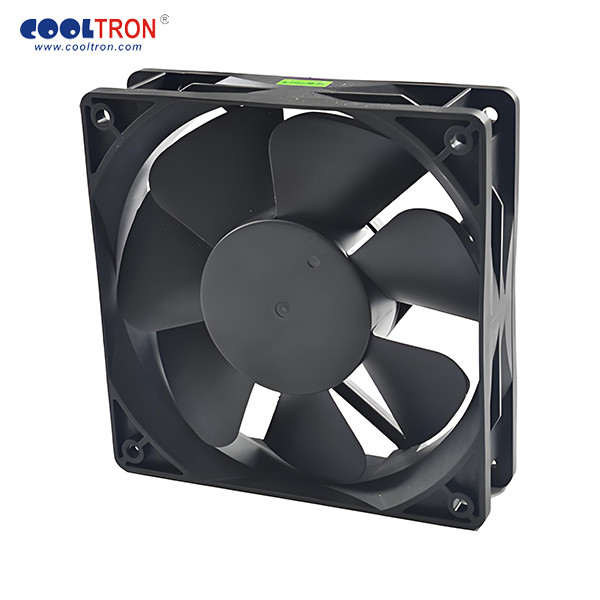

| Description | DC Axial Fan; 120x120x32mm; 24 VDC;122.20(cfm); 50.20(dBA); Sleeve; Terminal; PBT UL 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 120x120x32mm • Bearing: Sleeve • Voltage: 24 VDC • Lead Type: Terminal • Air Flow (CFM): 122.20 • Static Pressure: 10.90 • Noise (dBA): 50.20 • Speed (RPM): 3,750
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 120x120x32mm |
| Bearing | Sleeve |
| Voltage | 24 VDC |
| Lead Type | Terminal |
| Speed | High |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 35%-85%RH) |
| Storage Temp: | -40℃~70℃(Humidity 35%-85%RH) |
| Lead Wire: | UL Type #22 AWG |
| Operating Voltage | 12.0~27.6 |
| Air Flow (CFM) | 122.20 |
| Static Pressure | 10.90 |
| Noise (dBA) | 50.20 |
| Speed (RPM) | 3,750 |
