To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD1232B12T3-61 |

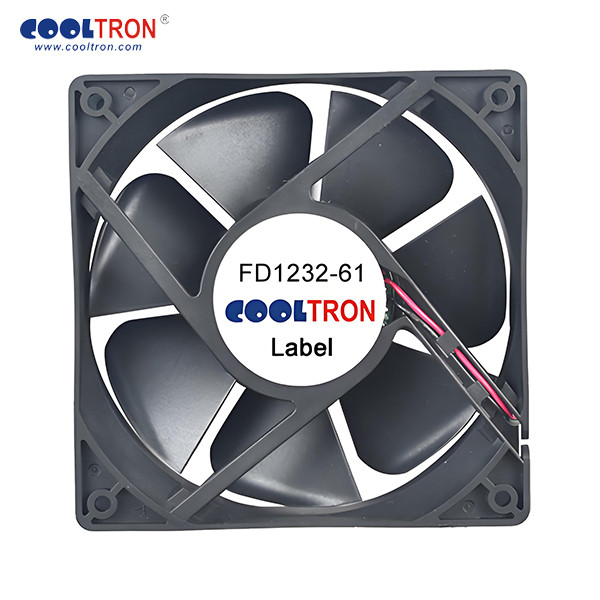

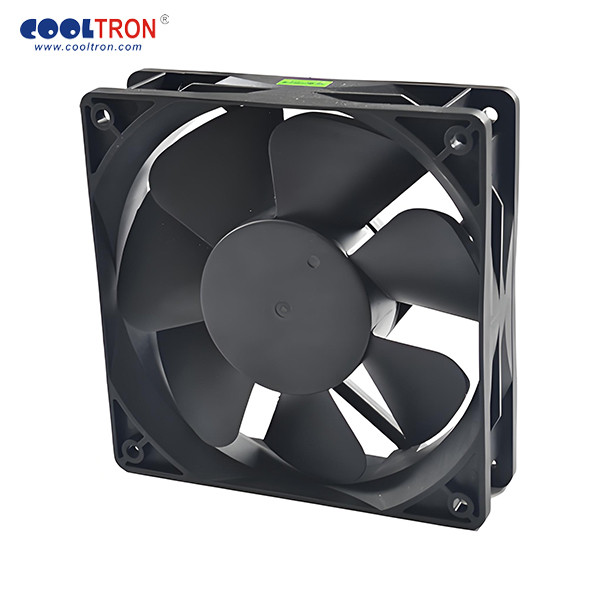

| Description | DC Axial Fan; 120x120x32mm; 12 VDC; 94.40(cfm); 43.30(dBA); Dual Ball; Terminal; PBT 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 120x120x32mm • Bearing: Dual Ball • Voltage: 12 VDC • Lead Type: Terminal • Air Flow (CFM): 94.40 • Static Pressure: 7.00 • Noise (dBA): 43.30 • Speed (RPM): 2,900
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 120x120x32mm |
| Bearing | Dual Ball |
| Voltage | 12 VDC |
| Lead Type | Terminal |
| Speed | Low |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 35%-85%RH) |
| Storage Temp: | -40℃~70℃(Humidity 35%-85%RH) |
| Lead Wire: | UL Type #22 AWG |
| Operating Voltage | 6.0~13.8 |
| Air Flow (CFM) | 94.40 |
| Static Pressure | 7.00 |
| Noise (dBA) | 43.30 |
| Speed (RPM) | 2,900 |
