To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FD1225S12T5-75B |

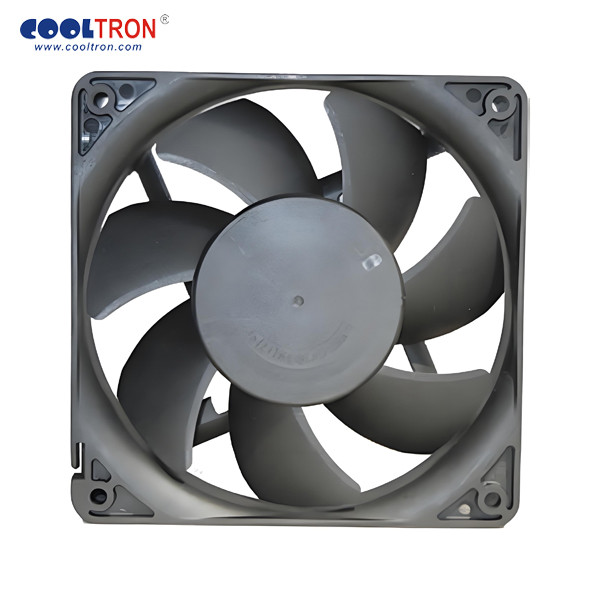

| Description | DC Axial Fan; 120x120x25mm; 12 VDC; 72.90(cfm); 36.10(dBA); Sleeve; Terminal; PBT UL 94V-0 |
| Datasheet | Download Datasheet |
DC Axial Fan • Fan Size: 120x120x25mm • Bearing: Sleeve • Voltage: 12 VDC • Lead Type: Terminal • Air Flow (CFM): 72.90 • Static Pressure: 2.10 • Noise (dBA): 36.10 • Speed (RPM): 1,800
| Category | |
| Manufacturer | Cooltron |
| Fan Size | 120x120x25mm |
| Bearing | Sleeve |
| Voltage | 12 VDC |
| Lead Type | Terminal |
| Speed | Medium |
| Special Functions | - |
| Connectors | - |
| Housing/Blade: | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistan: | 10MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength: | 5mA max. 500VAC/min between bare wire and frame |
| Operation Temp: | -10℃~70℃(Humidity 35%-85%RH) |
| Storage Temp: | -40℃~75℃(Humidity 35%-85%RH) |
| Lead Wire: | UL Type #24 AWG |
| Operating Voltage | 7.0~13.8 |
| Air Flow (CFM) | 72.90 |
| Static Pressure | 2.10 |
| Noise (dBA) | 36.10 |
| Speed (RPM) | 1,800 |
