To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FA9225S11T7-51 |

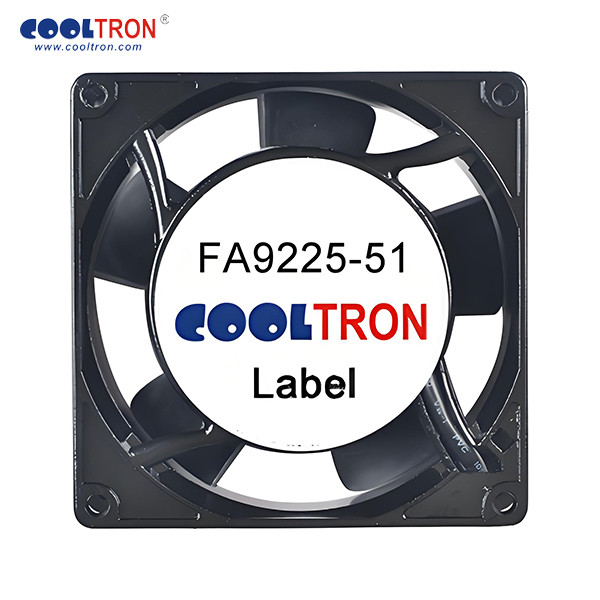

| Description | AC Axial Fan; 92x92x25mm; 30.0/36.0CFM); 40.0/45.0(dBA); 115V; DC Aluminum, Black; Term |
| Datasheet | Download Datasheet |
AC Axial Fan • Size: 92x92x25mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 115 • AirFlow (CFM): 30.0/36.0 • Static Pressure (mm-H2O): 4.6/6.5 • Noise (dBA): 40.0/45.0 • Speed (RPM): 2,700/3,200 • Connection: Terminal
| Category | |
| Manufacturer | Cooltron |
| Size | 92x92x25mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -20oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Impedance Protected |
| Voltage (VAC) | 115 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 30.0/36.0 |
| Static Pressure (mm-H2O) | 4.6/6.5 |
| Noise (dBA) | 40.0/45.0 |
| Speed (RPM) | 2,700/3,200 |
| Current (mA) | 140/110 |
| Power (W) | 11/9 |
| Connection | Terminal |
