To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

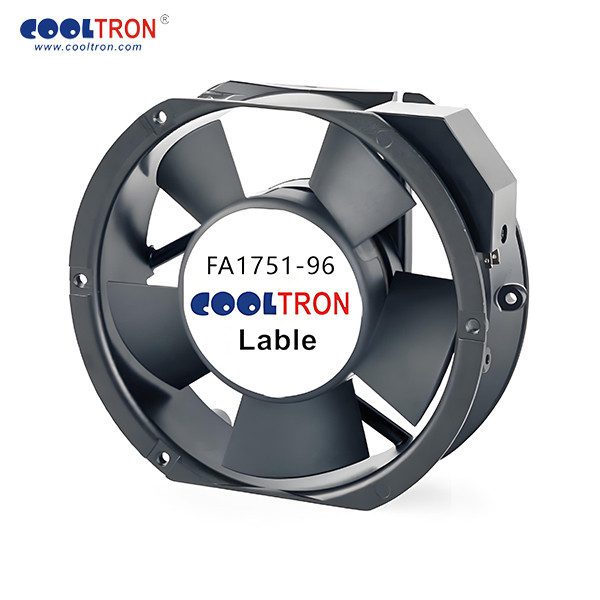

| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1751S11W7-96 |
| Description | AC Axial Fan; 172x150x51mm; 198.9/211.1CFM);47.3/54.2(dBA); 115V; DC Aluminum, Black; Wire |
| Datasheet | Download Datasheet |
AC Axial Fan • Size: 172x150x51mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 115 • AirFlow (CFM): 198.9/211.1 • Static Pressure (mm-H2O): 12.6/13.4 • Noise (dBA): 47.3/54.2 • Speed (RPM): 2,500/2,700 • Connection: Wire Lead
| Category | |
| Manufacturer | Cooltron |
| Size | 172x150x51mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -10oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Impedance Protected |
| Voltage (VAC) | 115 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 198.9/211.1 |
| Static Pressure (mm-H2O) | 12.6/13.4 |
| Noise (dBA) | 47.3/54.2 |
| Speed (RPM) | 2,500/2,700 |
| Current (mA) | 500/440 |
| Power (W) | 39/36 |
| Connection | Wire Lead |
