To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1751B22W7C-52 |

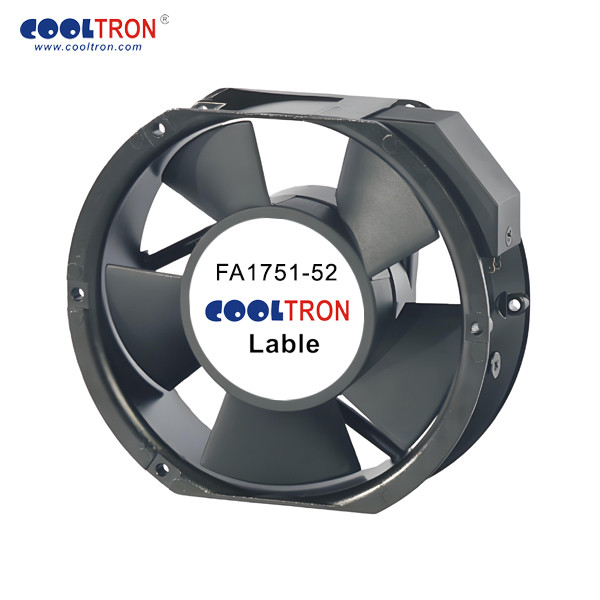

| Description | AC Axial Fan; 172x151x51mm; 198.0/230.0CFM);57.0/61.0(dBA); 230V; DC Aluminum, Black; Wire |
| Datasheet | Download Datasheet |
AC Axial Fan • Size: 172x151x51mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 230 • AirFlow (CFM): 198.0/230.0 • Static Pressure (mm-H2O): 16.7/16.3 • Noise (dBA): 57.0/61.0 • Speed (RPM): 2,900/3,300 • Connection: Wire Lead
| Category | |
| Manufacturer | Cooltron |
| Size | 172x151x51mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -20oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Thermally Protected |
| Voltage (VAC) | 230 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 198.0/230.0 |
| Static Pressure (mm-H2O) | 16.7/16.3 |
| Noise (dBA) | 57.0/61.0 |
| Speed (RPM) | 2,900/3,300 |
| Current (mA) | 110/150 |
| Power (W) | 25/32 |
| Connection | Wire Lead |
