To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1238S22T7C-31 |
| Description | AC Axial Fan; 120x120x38mm; 105.6/110.6CFM);38.4/42.4(dBA); 230V; DC Aluminum, Black; Term |
| Datasheet | Download Datasheet |

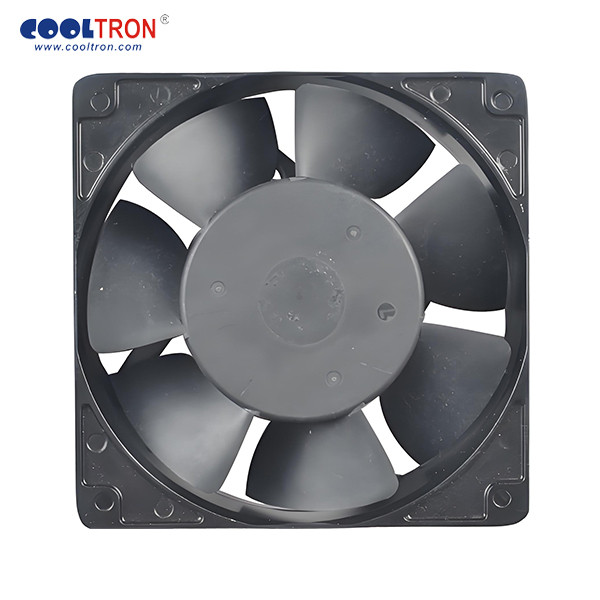

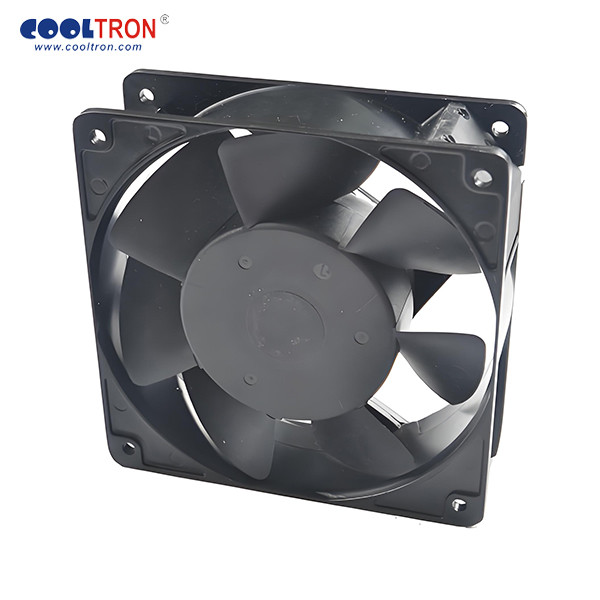

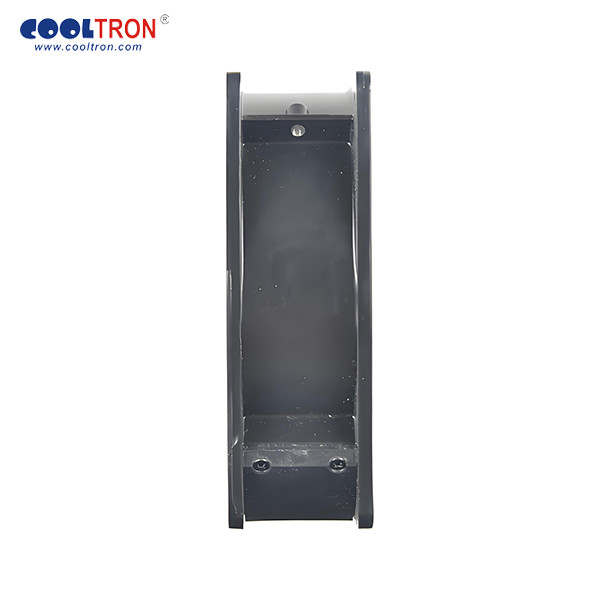

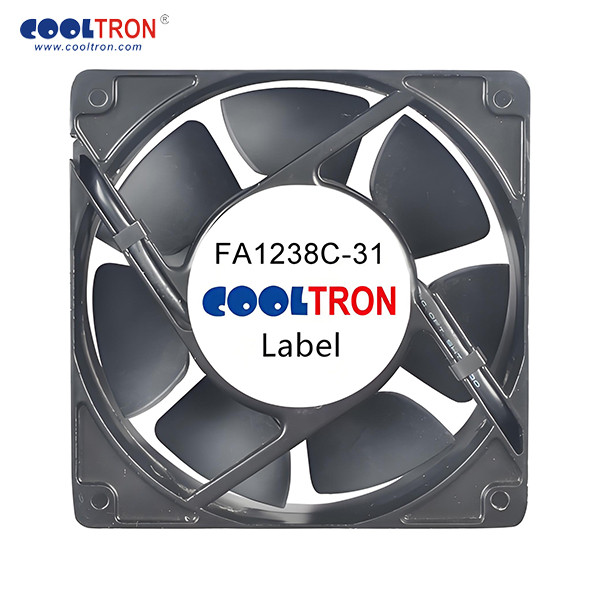

AC Axial Fan • Size: 120x120x38mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 230 • AirFlow (CFM): 105.6/110.6 • Static Pressure (mm-H2O): 7.4/6.6 • Noise (dBA): 38.4/42.4 • Speed (RPM): 2,550/2,800 • Connection: Terminal
| Category | |
| Manufacturer | Cooltron |
| Size | 120x120x38mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -10oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Thermally Protected |
| Voltage (VAC) | 230 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 105.6/110.6 |
| Static Pressure (mm-H2O) | 7.4/6.6 |
| Noise (dBA) | 38.4/42.4 |
| Speed (RPM) | 2,550/2,800 |
| Current (mA) | 80/90 |
| Power (W) | 13/14 |
| Connection | Terminal |
