To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1238S22T7-51 |
| Description | AC Axial Fan; 120x120x38mm; 85.0/97.0CFM); 44.0/48.0(dBA); 230V; DC Aluminum, Black; Term |
| Datasheet | Download Datasheet |

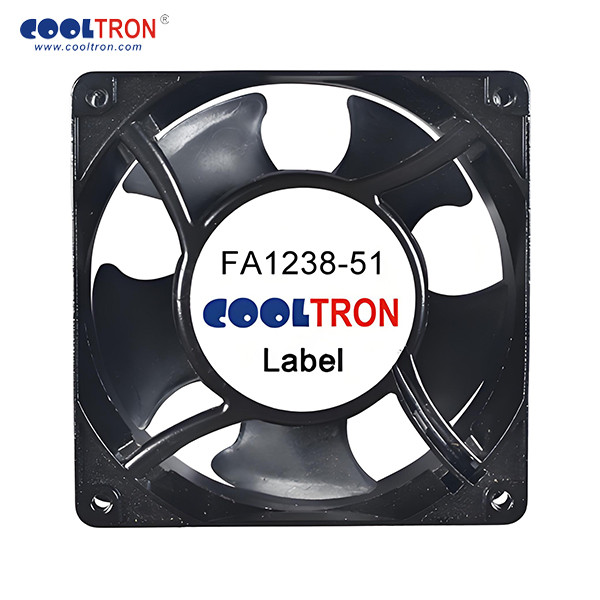

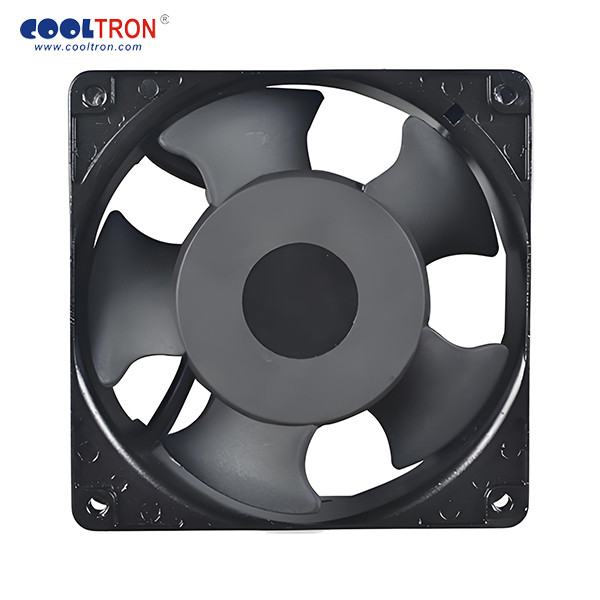

AC Axial Fan • Size: 120x120x38mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 230 • AirFlow (CFM): 85.0/97.0 • Static Pressure (mm-H2O): 7.1/6.7 • Noise (dBA): 44.0/48.0 • Speed (RPM): 2,700/3,100 • Connection: Terminal
| Category | |
| Manufacturer | Cooltron |
| Size | 120x120x38mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -20oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Impedance Protected |
| Voltage (VAC) | 230 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 85.0/97.0 |
| Static Pressure (mm-H2O) | 7.1/6.7 |
| Noise (dBA) | 44.0/48.0 |
| Speed (RPM) | 2,700/3,100 |
| Current (mA) | 130/100 |
| Power (W) | 20/16 |
| Connection | Terminal |
