To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1225S11W5-96 |

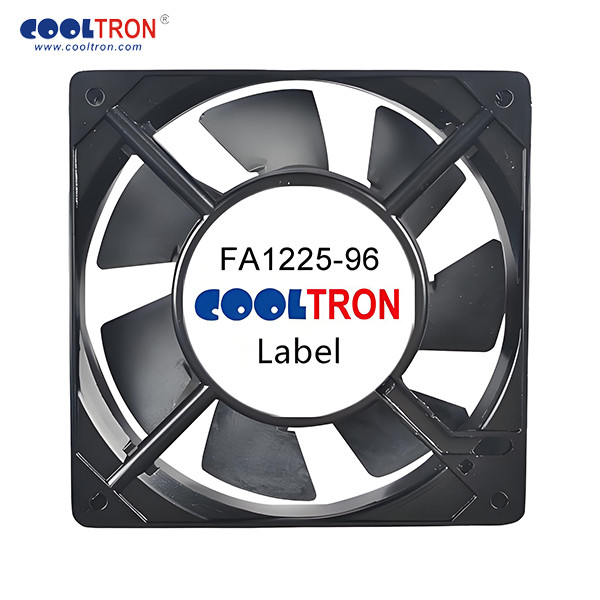

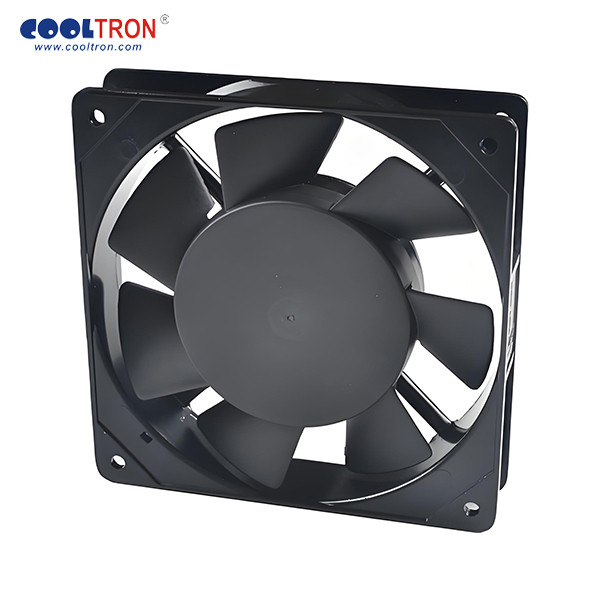

| Description | AC Axial Fan; 120x120x25mm; 50.8/53.8CFM); 29.6/31.5(dBA); 115V; DC Aluminum, Black; Wire |
| Datasheet | Download Datasheet |
AC Axial Fan • Size: 120x120x25mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 115 • AirFlow (CFM): 50.8/53.8 • Static Pressure (mm-H2O): 2.6/2.8 • Noise (dBA): 29.6/31.5 • Speed (RPM): 2,000/2,200 • Connection: Wire Lead
| Category | |
| Manufacturer | Cooltron |
| Size | 120x120x25mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -10oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Impedance Protected |
| Voltage (VAC) | 115 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 50.8/53.8 |
| Static Pressure (mm-H2O) | 2.6/2.8 |
| Noise (dBA) | 29.6/31.5 |
| Speed (RPM) | 2,000/2,200 |
| Current (mA) | 120/100 |
| Power (W) | 11/9 |
| Connection | Wire Lead |
