| Manufacturer | Cooltron |
| Manufacturer Product Number | FA1125B22W7-96 |

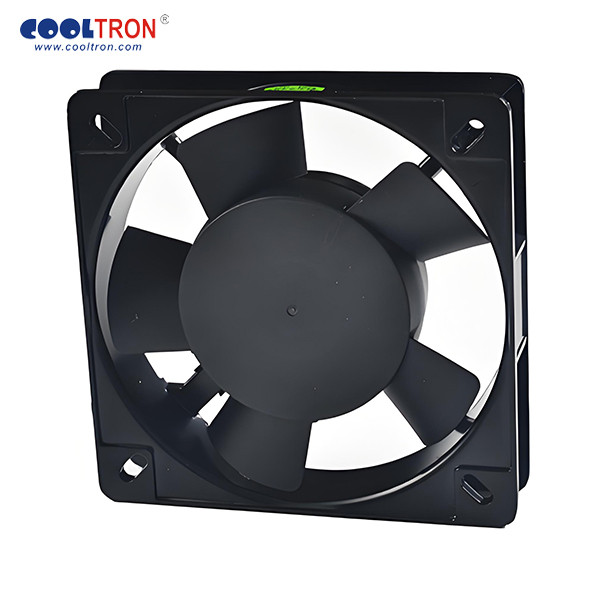

| Description | AC Axial Fan; 110x110x25mm; 48.7/55.8CFM); 38.4/41.4(dBA); 230V; DC Aluminum, Black; Wire |
| Datasheet | Download Datasheet |
AC Axial Fan • Size: 110x110x25mm • Housing: Die-Cast Aluminum, Painted Black • Blade: Thermoplastic PBT, UL 94V-0 • Voltage (VAC): 230 • AirFlow (CFM): 48.7/55.8 • Static Pressure (mm-H2O): 4.6/5.2 • Noise (dBA): 38.4/41.4 • Speed (RPM): 2,100/2,300 • Connection: Wire Lead
| Category | |
| Manufacturer | Cooltron |
| Size | 110x110x25mm |
| Housing | Die-Cast Aluminum, Painted Black |
| Blade | Thermoplastic PBT, UL 94V-0 |
| Insulation Resistance | 100MΩ, 500VDC/min between bare wire and frame |
| Dielectric Strength | 1500VAC for one minutue |
| Operation Temperature | -10oC~70oC(Humidity 35%-85%RH) |
| Storage Temperature | -40oC~85oC(Humidity 35%-85%RH) |
| Motor Protection | Impedance Protected |
| Voltage (VAC) | 230 |
| Frequency (Hz) | 50/60 |
| AirFlow (CFM) | 48.7/55.8 |
| Static Pressure (mm-H2O) | 4.6/5.2 |
| Noise (dBA) | 38.4/41.4 |
| Speed (RPM) | 2,100/2,300 |
| Current (mA) | 90/80 |
| Power (W) | 12/10 |
| Connection | Wire Lead |
