To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Conta-Clip |
| Manufacturer Product Number | 17142.5 |

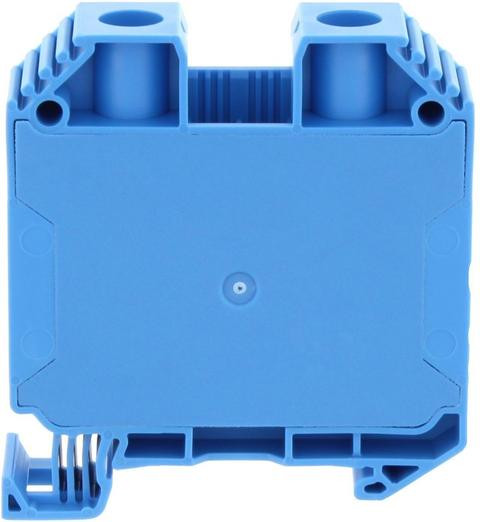

| Description | Din Rail, Channel Terminal Blk; Feed Through; Screw; 1/0-16 AWG; Blue; 2 Pos; 1 Rows |
| Datasheet | Download Datasheet |
Din Rail, Channel Terminal Block • Type: Feed Through • Number of Positions: 2 • : 1 • Terminal - Width: 16.1mm • Termination Style: Screw • Wire Gauge or Range - AWG: 1/0-16 AWG • Color: Blue
| Category | |
| Manufacturer | Conta-Clip |
| Type | Feed Through |
| Disconnect Type | - |
| Number of Positions | 2 |
| Number of Levels | 1 |
| Terminal - Width | 16.1mm |
| Termination Style | Screw |
| Current - IEC | 125 A |
| Voltage - IEC | 1000V |
| Current - UL | 150 A |
| Voltage - UL | 600V |
| Wire Gauge or Range - AWG | 1/0-16 AWG |
| Wire Gauge or Range - mm² | 1.5-50mm² |
| Features | - |
| Color | Blue |
| Fuse Type | - |
