| Manufacturer | Carlo Gavazzi |
| Manufacturer Product Number | UA12ASD02APM1IO |
| Description | Ultrasonic Sensor; 20–200 mm (blind zone 20 mm); M12 |
| Datasheet | Download Datasheet |

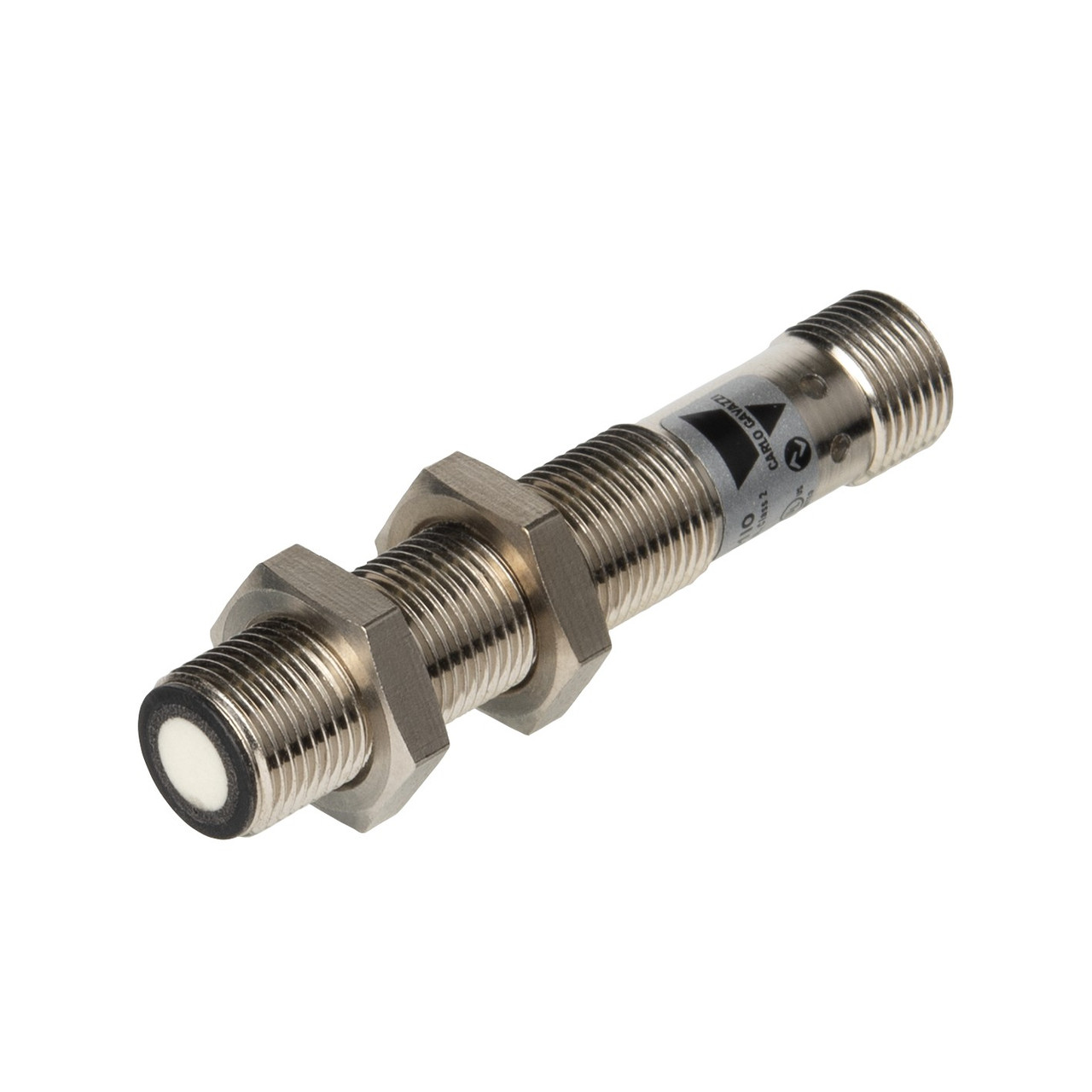

The Carlo Gavazzi UA12ASD02APM1IO is an M12 threaded ultrasonic sensor with a 20–200 mm (blind zone 20 mm) sensing range, Analog 0–10 V / 4–20 mA (0–20 mA via IO-Link) + Push-Pull/NPN/PNP, IO-Link Programmable (NO/NC) output and an 18–30 V DC supply.
Accuracy: repeatability < 0.5 mm; linear accuracy < 0.4 %; resolution 1.0 mm. Beam angle: ± 4.5°. Output current 150 mA. Switching frequency 20 Hz. Response time ≤ 300 ms. Indicator: yellow and green LEDs (switching output / status). It has an M12 4-pin plug and a nickel-plated brass housing. IP 67; operating temperature -25 to +70 °C. Approvals: CE, UL (IND. CONT. EQ. 29W7), IO-Link 1.1.
| Category | |
| Manufacturer | Carlo Gavazzi |
| Model | UA12ASD |
| Model | UA12ASD |
| Body Style | Cylindrical Threaded |
| Housing Diameter | M12 |
| Thread Size | M12 x 1 |
| Sensing Range | 20–200 mm (blind zone 20 mm) |
| Beam Angle | ± 4.5° |
| Output Type | Analog 0–10 V / 4–20 mA (0–20 mA via IO-Link) + Push-Pull/NPN/PNP, IO-Link |
| Output Function | Programmable (NO/NC) |
| Supply Voltage | 18–30 V DC |
| Supply Current | ≤ 40 mA (24 VDC) |
| Load Current | 150 mA |
| Voltage Drop | ≤ 2 V DC |
| Switching Frequency | 20 Hz |
| Response Time | ≤ 300 ms |
| Accuracy | Repeatability < 0.5 mm; linear accuracy < 0.4 %; resolution 1.0 mm |
| Short Circuit Protection | Short circuits and reverse polarity (except analog output pin 2) |
| Status Indicator | Yellow and green LEDs (switching output / status) |
| Connection | M12 4-pin plug |
| Housing Material | Nickel-plated brass |
| Protection Category | IP 67 |
| Operating Temperature | -25…+70 |
| Dimensions | M12 x 65 mm |
| Approvals | CE, UL (IND. CONT. EQ. 29W7), IO-Link 1.1 |
