Product Description
|
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Current Rating (Amps) | 35A |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 60 V |
| Actuator Type | Lever |
| Number of Poles | 1 |
| Terminal Type | Ring |
| Trip Curve | B |
| Illumination | None |
| Illumination Voltage (Nominal) | - |
| Approval Agency | CSA C22.2 No 5, IEC 60947-2, UL489 |
| Series Features |

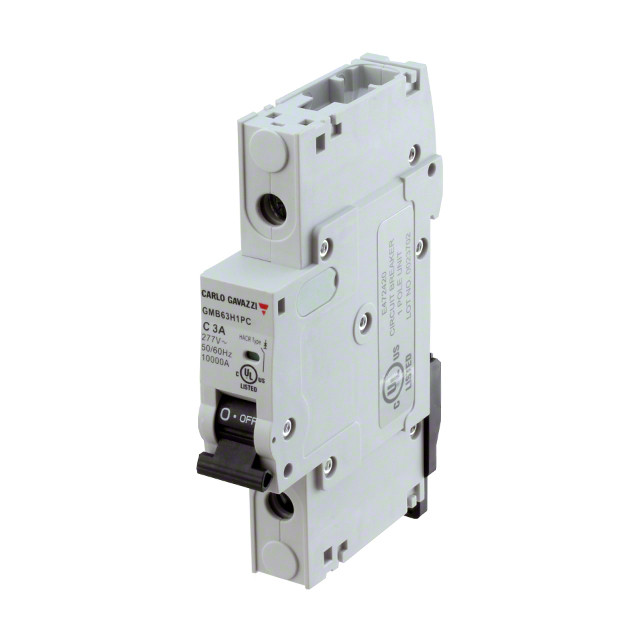

| Miniature Circuit Breakers Type GMB63 |
| Series Description: Competitive line of UL 489 miniature circuit breakers for 240VAC and 480Y/277VAC application where supplementary or branch circuit protection is required. GMB circuit breakers are available in 1, 2 and 3 pole configurations, with amperage rating up to 63A. Line of UL489 Miniature Circuit Protectors for branch circuit protection in 480Y277VAC and 240VAC single and three phase applications. |
|
