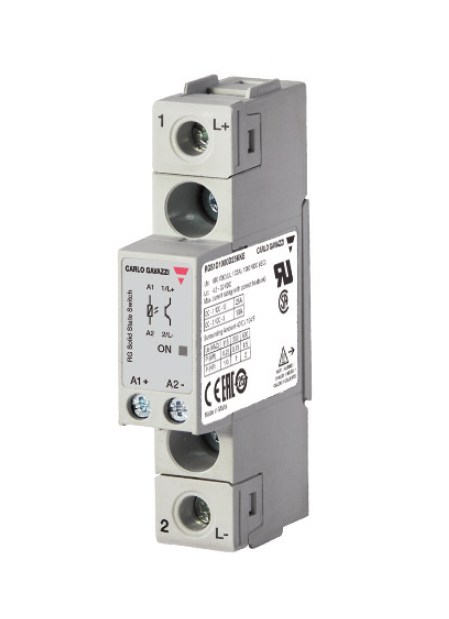

Product Description
Description: Solid State Contactor • Mounting Type: Chassis Mount • Circuit: 1A SPST-NO • Output Type: DC Switching • Voltage - Input: 4.5 ~ 32VDC • Voltage - Load: 1000 VDC • Load Current: 15 A • Termination Style: Screw Terminal
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Chassis Mount |
| Circuit | 1A SPST-NO |
| Output Type | DC Switching |
| Voltage - Input | 4.5 ~ 32VDC |
| Voltage - Load | 1000 VDC |
| Load Current | 15 A |
| Termination Style | Screw Terminal |
| Power Connection | Screw Terminal |
| Connection Configuration | Contactor |
| Series Features |
| Solid State Relays DC Switching Types RGC1D Solid State Contactor / RGS1D Solid State Relay |
| Series Description: This product series is mainly intended to switch a string of photovoltaic panels with a maximum string voltage of 1000 VDC and up to 25 ADC in only 17.5 mm width. It may be used in other DC application as well. The control port is protected against reverse polarity while the IGBT at the output is protected against back voltage with an integrated freewheeling diode. RGS1D is the panel mount version while the RGC1D has an integrated heatsink. Specifications are stated at 25°C unless otherwise noted. |
|
