Product Description
Description: Solid State Contactor • Mounting Type: DIN Rail • Circuit: 1A SPST-NO • Output Type: AC, Zero Cross • Voltage - Input: 4 ~ 32VDC • Voltage - Load: 42 V ~ 600 V • Load Current: 50 A • Termination Style: Screw Terminal • Option: Din Rail Mount
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Circuit | 1A SPST-NO |
| Output Type | AC, Zero Cross |
| Voltage - Input | 4 ~ 32VDC |
| Voltage - Load | 42 V ~ 600 V |
| Load Current | 50 A |
| Termination Style | Screw Terminal |
| Power Connection | Screw Terminal |
| Connection Configuration | Contactor |
| Option | Din Rail Mount |
| Series Features |

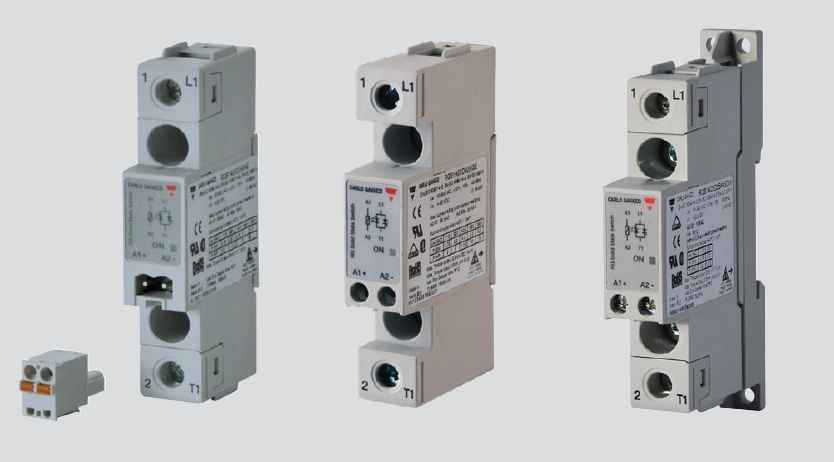

| Solid State Relays Industrial, 1-Phase, 17.5mm with built-in varistor E type connection Types RGS..E, RGS..EDIN |
| Series Description: Aim of this solid state switching device is to switch heater loads and motor loads frequently. The range offers solutions up to 90 AAC in 17.5 mm width. Output connections are via a screw connection, having a captivated washer allowing for safe looping or via box clamp which can handle cables up to 25 mm2 (AWG3). Input connection is provided either via a screw connection having a captivated washer or via a pluggable spring loaded input. Options with integrated heatsink are available in the RGC range. The RGS...DIN provides an option for DIN mounting of the RGS series with a rating of 10 AAC @ 40?C. |
|
