Product Description

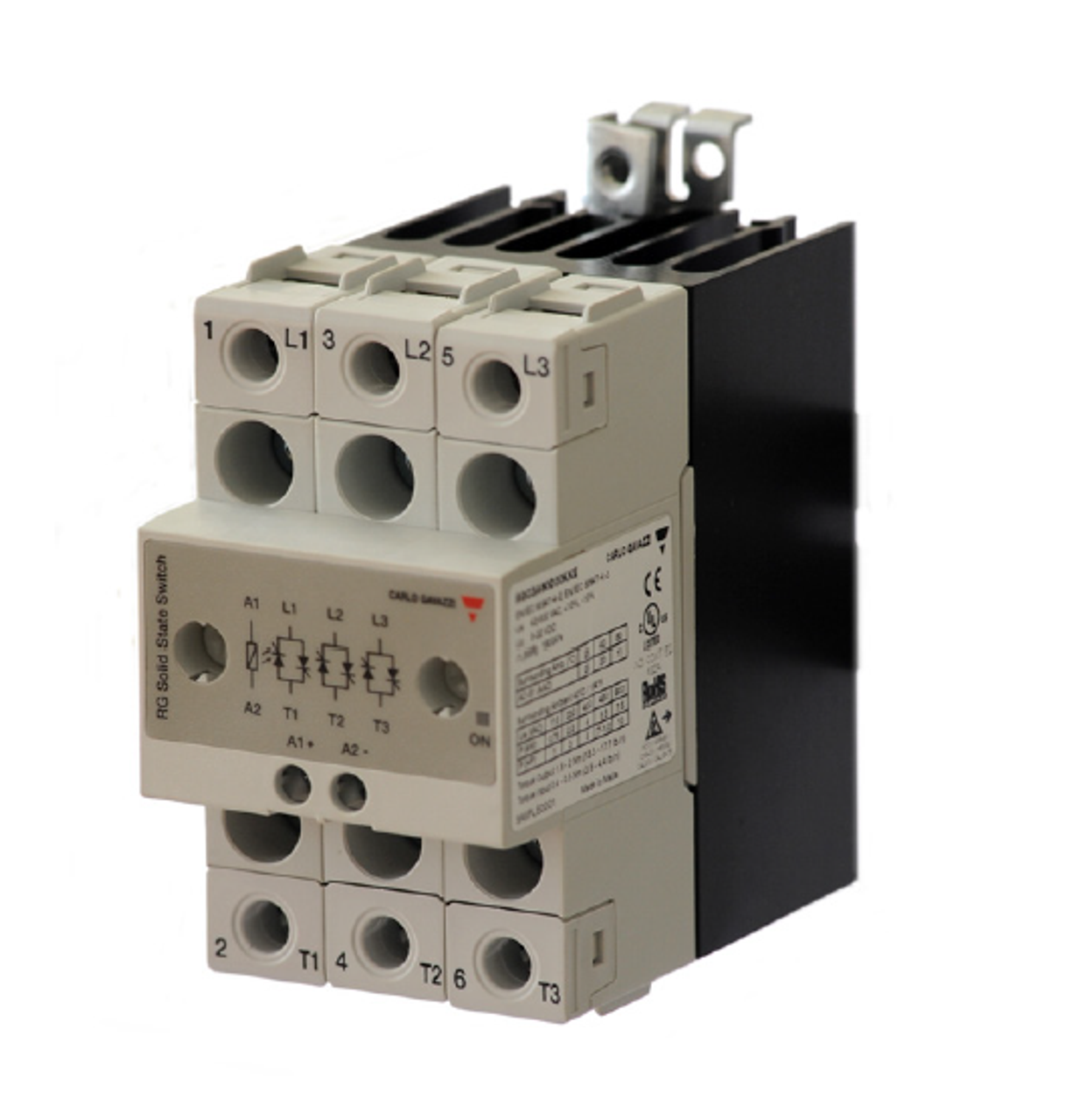

Description: 3P -SSC-AC IN-ZC 600V 3X65A 1200VP-E-CLP IN MNTR
Product Information | Resources |
|
|
Specifications |
Product Attribute | Attribute Value |
Mounting Type | Chassis Mount, DIN Rail |
Circuit | 3PST-NO (3 Form A) |
Output Type | AC, Zero Cross |
Load Current | 65 A |
Voltage - Input | 20 ~ 275VAC, 24 ~ 190VDC |
Voltage - Load | 90 ~ 660V |
Termination Style | Screw Terminal |
Package / Case | SSR with Integrated Heat Sink |
Series Features |
3-phase solid state relays with integrated heatsink |
Series Description: This product is intended to replace mechanical contactors especially when switching is frequent. The smallest product width in the RGC2, RGC3 range is 54 mm (3xDIN) and goes up to 70 mm. 2-pole and 3-pole switching options are available. Apart from resistive and slightly inductive loads, the RGC is certified for motor switching with associated motor ratings. A green LED gives indication of control voltage presence. Fan operation is controlled for the versions which have an integrated fan. Detection of SSR overheat, mains loss, SSR malfunction and load loss is possible with the RGC..M versions. An EMR alarm output is available for remote signaling. An additional feature with the RGC..M is the electronic auxiliary output. The RGC..M has additional LEDs for load status and alarm status indication. |
Applications: Plastic injection machines, Extrusion machines, Blow moulding machines, Thermoformers, Dryers, Electrical ovens, Fryers, Shrink tunnels, Air handling units, Sterilisation equipment, Climatic chambers, Ovens and furnaces. |
|
