Product Description
Description: Solid State Contactor • Mounting Type: Chassis Mount, DIN Rail • Circuit: 1A SPST-NO • Output Type: Instant ON switching • Load Current: 85 A • Voltage - Input: 4 ~ 32VDC • Voltage - Load: 42 ~ 600V • Termination Style: Box Lug • Power Connection: Box Lug • Package / Case: SSR with Integrated Heat Sink
| Product Information | | Resources |
| Manufacturer | Carlo Gavazzi | | Product Category | Contactor | | Product Sub Category | Solid State Contactor | | Series | RGC Series |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Chassis Mount, DIN Rail |
| Circuit | 1A SPST-NO |
| Output Type | Instant ON switching |
| Load Current | 85 A |
| Voltage - Input | 4 ~ 32VDC |
| Voltage - Load | 42 ~ 600V |
| Termination Style | Box Lug |
| Power Connection | Box Lug |
| Package / Case | SSR with Integrated Heat Sink |
| Connection Configuration | Solid State Relay |
| Option | Overtemperature Protection |

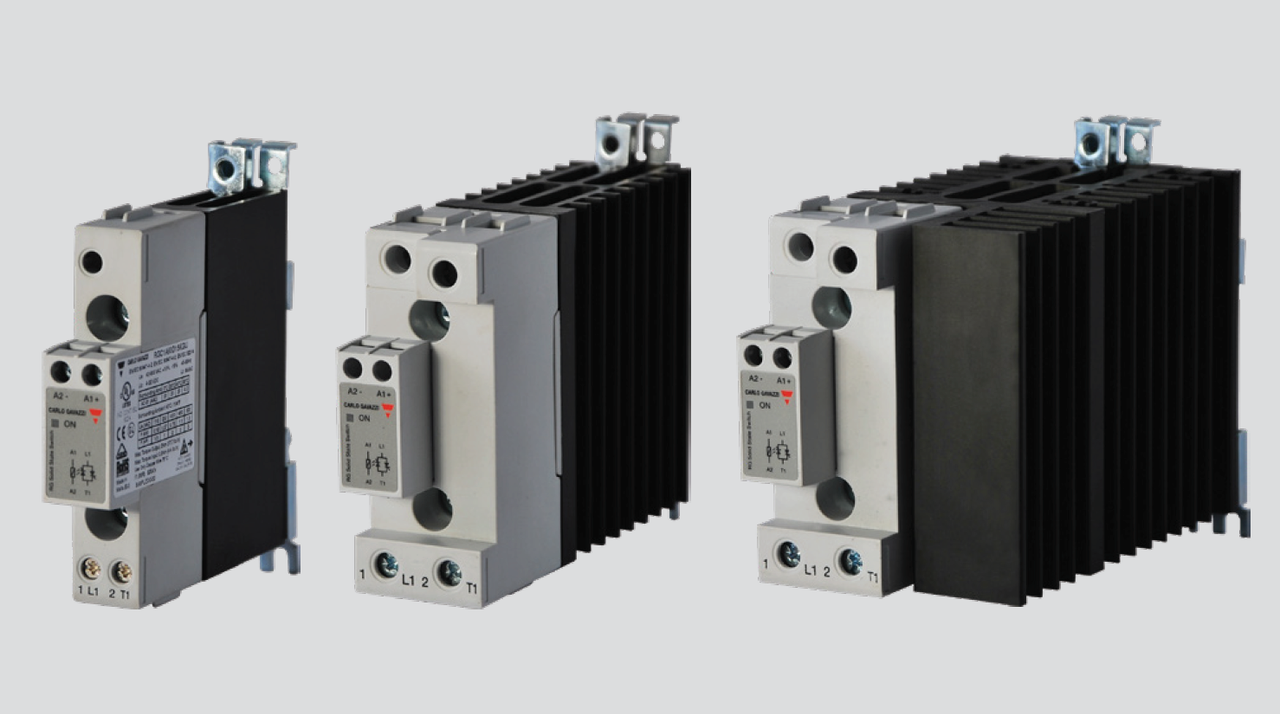

| Solid State Relay 1-Phase Integrated Heatsink Zero Cross or Instant On Switching Types RGC Solid State Contactor U Connection |
Series Description: This new range of solid state contactors presents a unique opportunity to maximize efficiency in panel space and is an evolution of solid state switches for which Carlo Gavazzi is very well known.
The nominal current ratings are at 40?C. The smallest width is 17.5 mm and is rated at 25AAC.
Voltage transient protection is standard across the output with a varistor. Specifications are stated at 25°C unless otherwise noted. |
- Product width ranging from 17.5mm up to 70mm
- Ratings: up to 660 VAC, 85 AAC @ 40 °C
- Up to 18000 A2s for the I2t and 1200 Vp blocking voltage
- Control voltages: 3-32 VDC, 20-275 VAC (24-190 VDC)
- Integrated voltage transient protection with varistor
- Design according to EN/IEC60947-4-2, EN/IEC60947-4-3, EN/IEC62314, UL508, CSA 22-2 No. 14-13
- Conformance to Railway standards
- 100 kA short circuit current rating according to UL508
|
RoHS Compliant
