To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Carlo Gavazzi |
| Manufacturer Product Number | EI3010TBCSS |
| Description | Inductive Sensor; 10 mm; M30; 2-wire AC; NC; 20–265 V AC, 50–60 Hz |
| Datasheet | Download Datasheet |

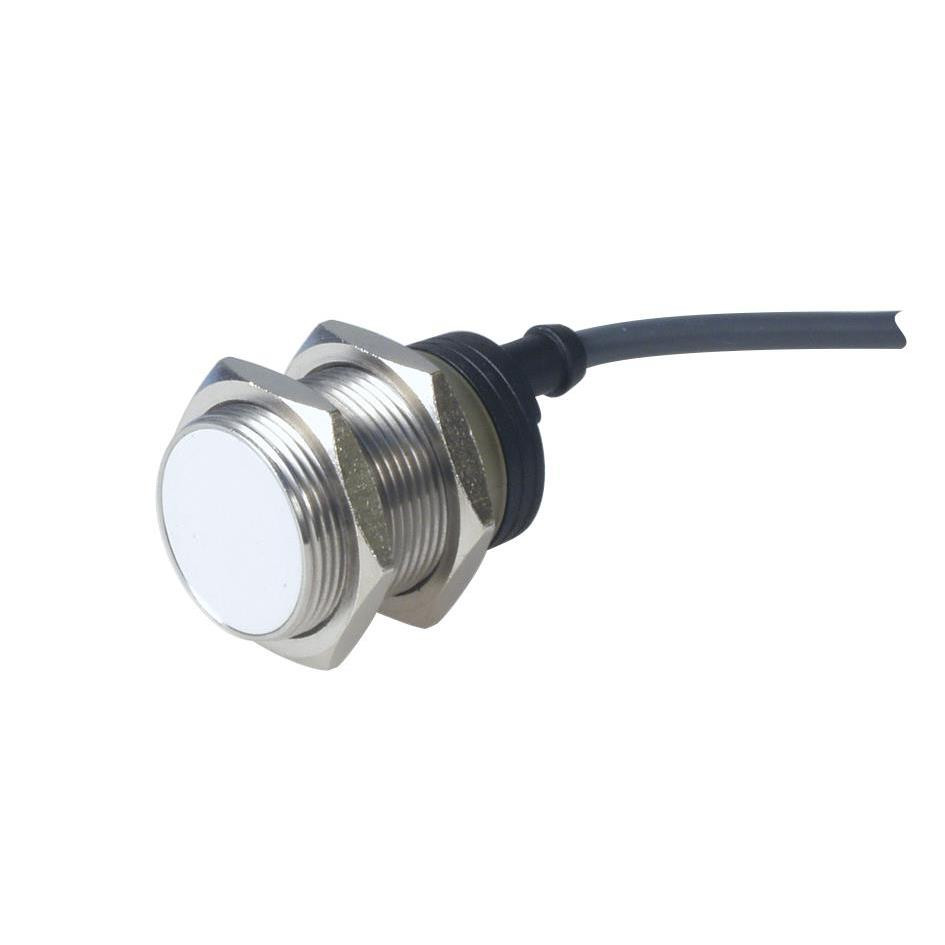

The Carlo Gavazzi EI3010TBCSS is an M30 threaded flush inductive proximity sensor with a 10 mm sensing range, 2-wire AC NC output and a 20–265 V AC, 50–60 Hz supply.
Output current 10–500 mA. Power-on delay ≤ 100 ms. Indicator: yellow LED. It has a 2 m PVC cable and a stainless steel (1.4301) housing. IP 67; operating temperature -25 to +70 °C (storage -30…+80). Approvals: UL, CSA, CE.
| Category | |
| Manufacturer | Carlo Gavazzi |
| Model | EI3010 |
| Body Style | Cylindrical Threaded |
| Housing Diameter | M30 |
| Thread Size | M30 x 1.5 |
| Sensing Range | 10 mm |
| Sensing Face | Flush |
| Output Type | 2-wire AC |
| Output Function | NC |
| Supply Voltage | 20–265 V AC, 50–60 Hz |
| Load Current | 10–500 mA |
| Voltage Drop | ≤ 8 V AC at max. load |
| Repeatability | ≤ 5% |
| Status Indicator | Yellow LED |
| Connection | 2 m PVC cable |
| Housing Material | Stainless steel (1.4301) |
| Protection Category | IP 67 |
| Operating Temperature (°C) | -25…+70 (storage -30…+80) |
| Dimensions | M30 x 59 mm |
| Approvals | UL, CSA, CE |
| Response Time | Power-on delay ≤ 100 ms |
