To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Carlo Gavazzi |
| Manufacturer Product Number | EI0802NACS |
| Description | Inductive Sensor; 2 mm; M8 x 1; NAMUR (DIN 19234); 7–9 VDC (rated 8.2 VDC); Cable |
| Datasheet | Download Datasheet |

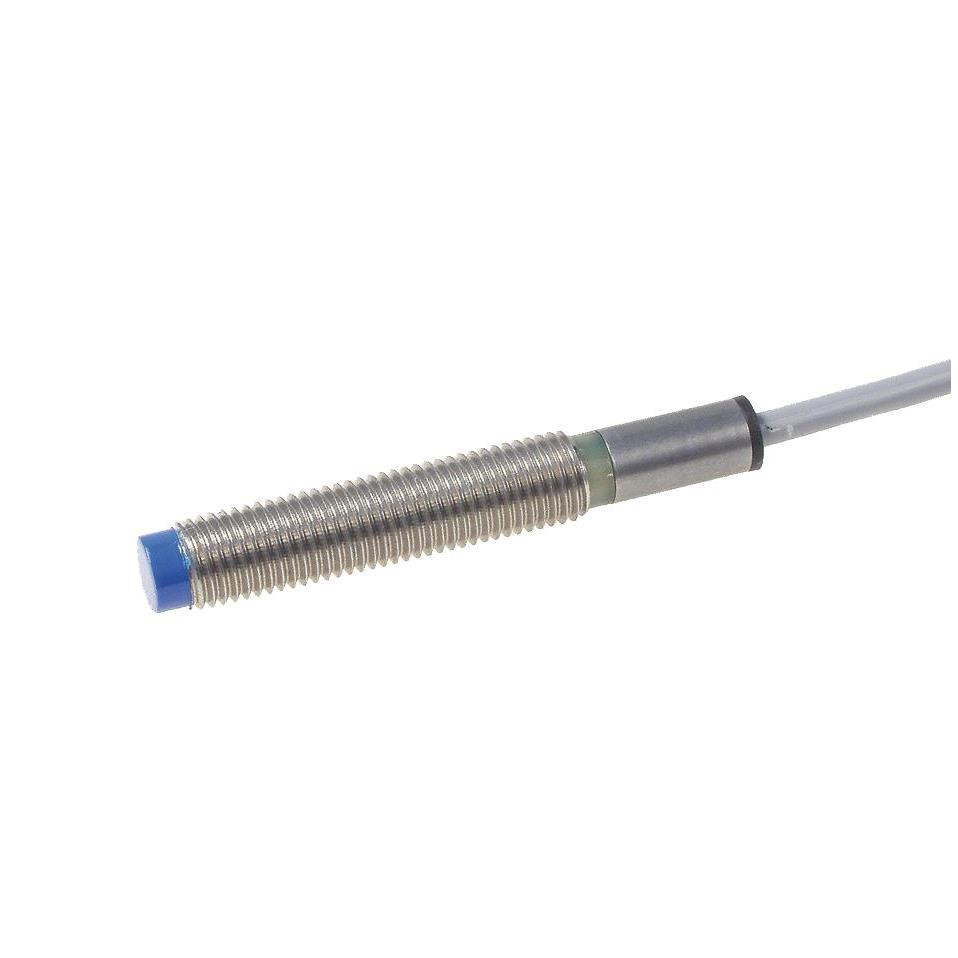

The Carlo Gavazzi EI0802NACS is an M8 non-flush inductive proximity sensor with a 2 mm sensing range, NAMUR (DIN 19234) output and a 7–9 VDC (rated 8.2 VDC) supply.
It has a cable and a stainless steel (1.4301) housing. IP 67; operating temperature -25 to +70 °C. Approvals: UL, CSA, CE.
| Category | |
| Manufacturer | Carlo Gavazzi |
| Body Style | Cylindrical, threaded, short version |
| Housing Diameter | M8 x 1 |
| Sensing Range | 2 mm |
| Sensing Face | Non-flush |
| Output Type | NAMUR (DIN 19234) |
| Supply Voltage | 7–9 VDC (rated 8.2 VDC) |
| Supply Current | Activated ≤ 1 mA; not activated ≥ 2.2 mA; max. 9.35 mA |
| Repeatability | ≤ 5% |
| Connection | Cable |
| Cable Length | 2 m |
| Housing Material | Stainless steel (1.4301) |
| Protection Category | IP 67 |
| Operating Temperature (°C) | -25…+70 |
| Approvals | UL, CSA, CE |
