Product Description

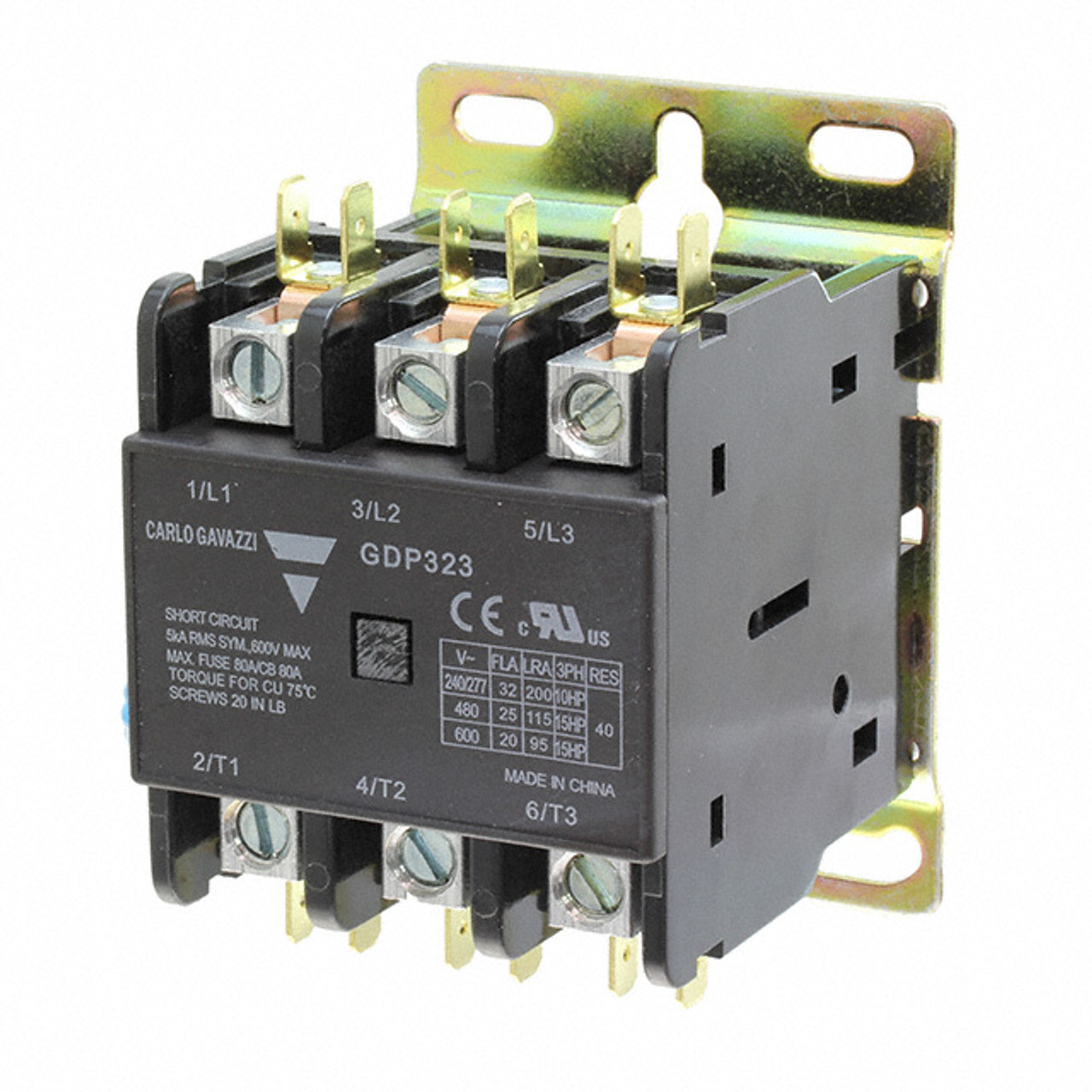

Description: Definite Purpose Contactor • Mounting Type: Chassis Mount • Coil Voltage: 220VAC • Number of Poles: 3 • Contact Form: 3A 3PST-NO • Contact Rating (Current): 32 A • Switching Voltage: 277VAC - Nom • Features: - • Termination Style: Box Lug, Quick Connect - 0.250" (6.3mm)
| Product Information | | Resources |
| Manufacturer | Carlo Gavazzi | | Product Category | Contactor | | Product Sub Category | Definite Purpose Contactor | | Series | GDP Series |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Chassis Mount |
| Coil Voltage | 220VAC |
| Number of Poles | 3 |
| Contact Form | 3A 3PST-NO |
| Contact Rating (Current) | 32 A |
| Switching Voltage | 277VAC - Nom |
| Features | - |
| Termination Style | Box Lug, Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -5°C ~ 40°C |
| Must Operate Voltage | 187 VAC |
| Must Release Voltage | 44 VAC |
| Shunt | Without |
| Definite Purpose Contactors 1, 2 and 3 pole Type GDP |
| Series Description: Power contactors specifically designed for the OEM when contactor, performance and cost must be optimized. Perfect choice for HVAC, lighting, pumps, compressors, pools, spas, welders, etc. Available in standard 1, 2 and 3-pole type. |
- Definite Purpose Contactors
- Switching up to 100A resistive, 90A inductive
- Line Voltage up to 600VAC on most sizes
- Control voltage up to 480VAC
- Screw or box lug terminals available on most sizes
- Fast-on coil and power terminal
- Hp ratings on 3-pole contactors
- UL recognized and CSA approved for US and Canada
- Cost effective
|
