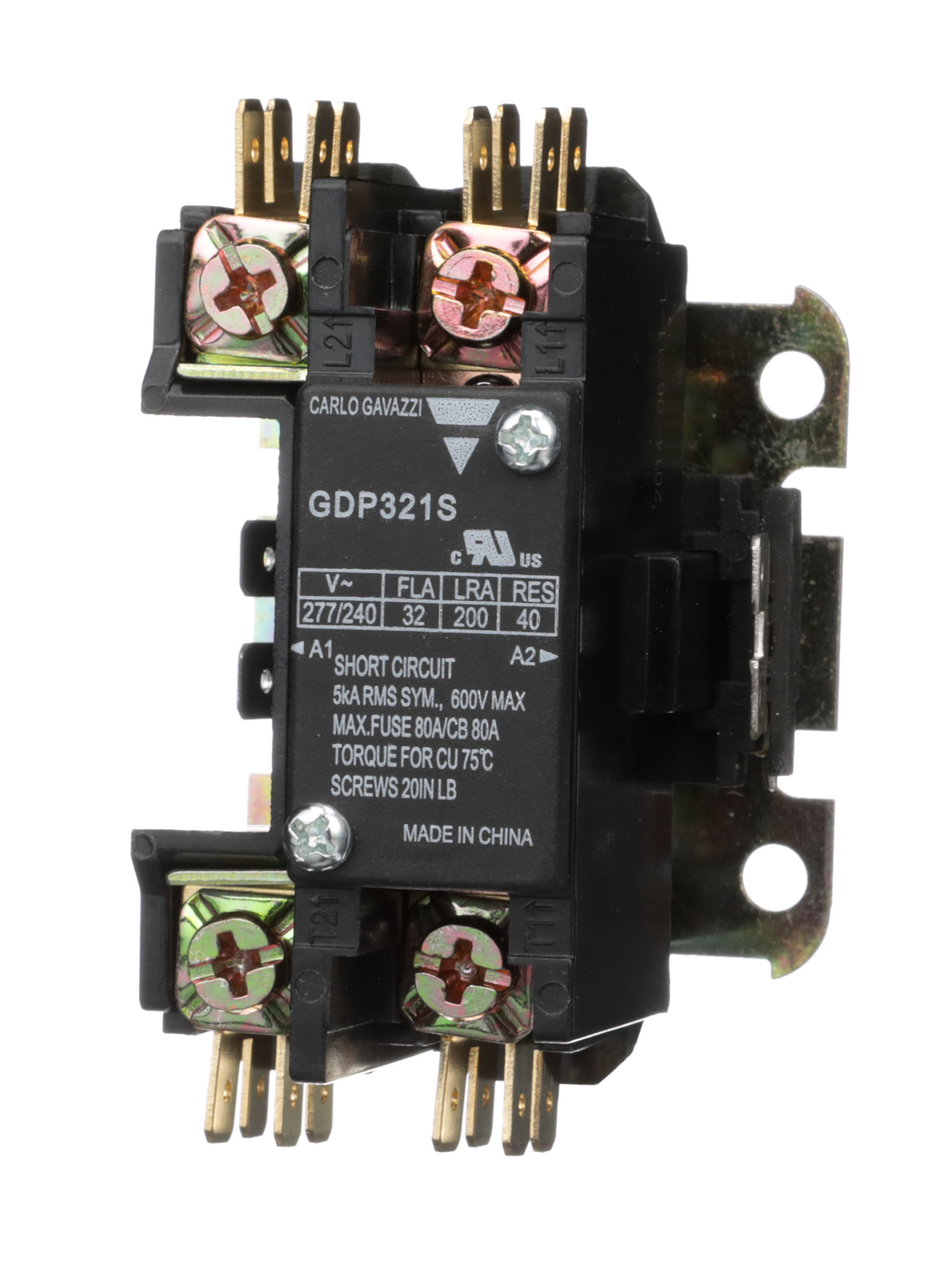

  • Carlo Gavazzi GDP321L24V01 Definite Purpose Contactor

    • To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

    Carlo Gavazzi GDP321L24V01

    Manufacturer Carlo Gavazzi
    Manufacturer Product Number GDP321L24V01

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Price
    1 5 10 25 50
    $21.76 $20.64 $19.95 $19.31 $18.42

    Product Description

    Description: Definite Purpose Contactor • Mounting Type: Chassis Mount • Coil Voltage: 24VAC • Number of Poles: 1 • Contact Form: 1A SPST-NO • Contact Rating (Current): 32 A • Switching Voltage: 277VAC - Nom • Features: Auxiliary Contacts - 1NC • Termination Style: Box Lug, Quick Connect - 0.250" (6.3mm)

          Product Information       Resources
    ManufacturerCarlo Gavazzi
    Product Category Contactor
    Product Sub Category Definite Purpose Contactor
    SeriesGDP Series

      Download Datasheet
          Specifications
    Product Attribute
    		Attribute Value
    Mounting TypeChassis Mount
    Coil Voltage24VAC
    Number of Poles1
    Contact Form1A SPST-NO
    Contact Rating (Current)32 A
    Switching Voltage277VAC - Nom
    FeaturesAuxiliary Contacts - 1NC
    Termination StyleBox Lug, Quick Connect - 0.250" (6.3mm)
    Operating Temperature-5°C ~ 40°C
    Must Operate Voltage20.4 VAC
    Must Release Voltage4.8 VAC
    ShuntWithout
          Series Features
    Definite Purpose Contactors 1, 2 and 3 pole Type GDP
    Series Description: Power contactors specifically designed for the OEM when contactor, performance and cost must be optimized. Perfect choice for HVAC, lighting, pumps, compressors, pools, spas, welders, etc. Available in standard 1, 2 and 3-pole type.
    • Definite Purpose Contactors
    • Switching up to 100A resistive, 90A inductive
    • Line Voltage up to 600VAC on most sizes
    • Control voltage up to 480VAC
    • Screw or box lug terminals available on most sizes
    • Fast-on coil and power terminal
    • Hp ratings on 3-pole contactors
    • UL recognized and CSA approved for US and Canada
    • Cost effective
