To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Carlo Gavazzi |
| Manufacturer Product Number | CD34CNFLFNCP2 |
| Description | Capacitive Sensor; NPN; NC; 10–30 V DC; 2 m PVC cable; Rectangular |
| Datasheet | Download Datasheet |

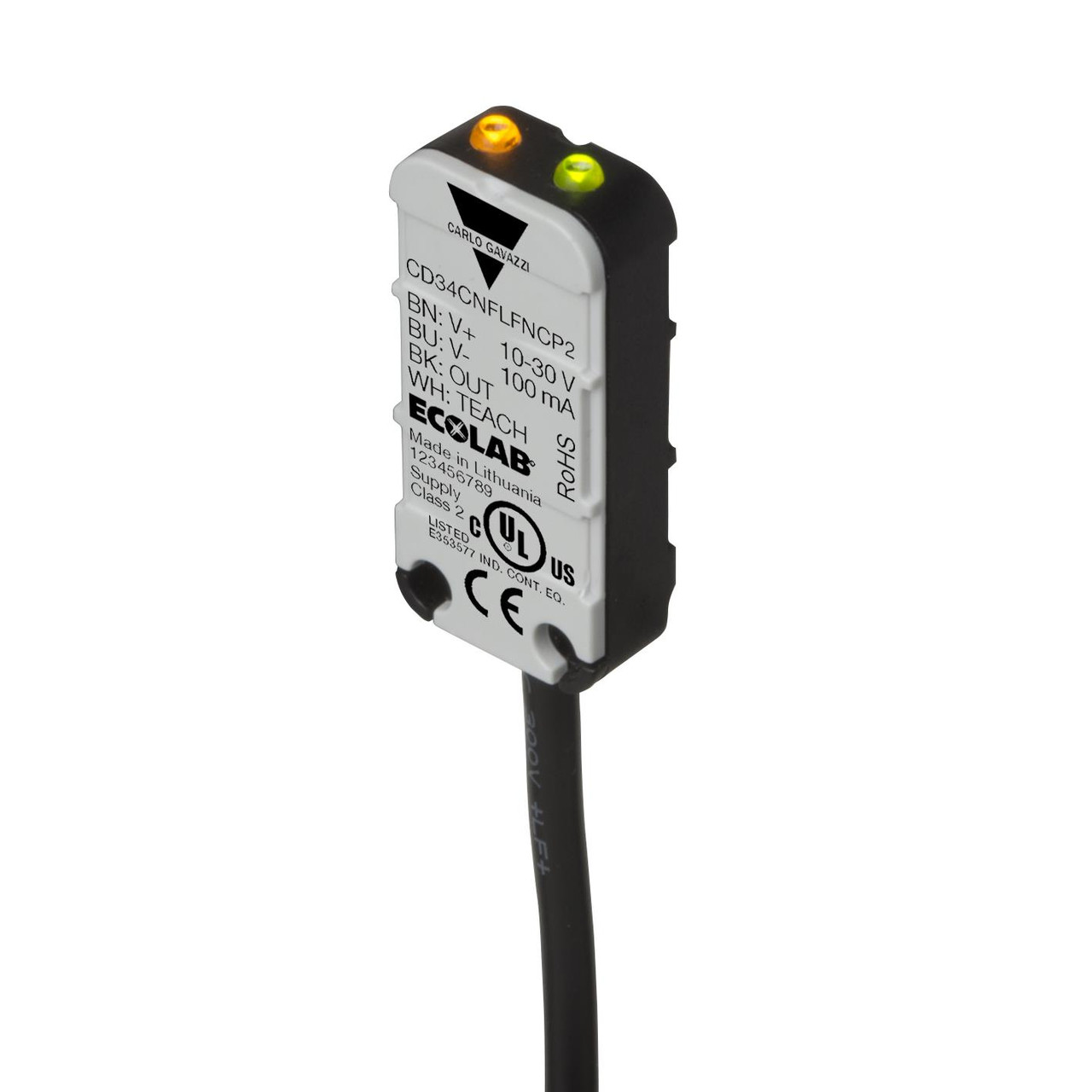

The Carlo Gavazzi CD34CNFLFNCP2 is a rectangular flush capacitive proximity sensor with a Through non-metallic wall: plastic 0.5–6 mm, glass 0.5–4 mm (out of the box); up to 10 mm with manual setup sensing range, NPN NC output and a 10–30 V DC supply.
Output current 100 mA. Response time ≤ 50 ms; power-on delay < 300 ms. Indicator: green LED (power ON), yellow LED (output). It has a 2 m PVC cable and a PC/PBT housing. IP 65, IP 66, IP 67, IP 68, IP 69K; operating temperature -25 to +80 °C (storage -40…+85). Approvals: CE, cULus (UL508 + C22.2), ECOLAB.
| Category | |
| Manufacturer | Carlo Gavazzi |
| Model | CD34 |
| Body Style | Rectangular |
| Sensing Range | Through non-metallic wall: plastic 0.5–6 mm, glass 0.5–4 mm (out of the box); up to 10 mm with manual setup |
| Sensing Face | Flush |
| Output Type | NPN |
| Output Function | NC |
| Supply Voltage | 10–30 V DC |
| Supply Current | ≤ 13 mA |
| Load Current | 100 mA |
| Voltage Drop | < 1.5 V |
| Short Circuit Protection | Short circuit, reverse polarity and transients |
| Status Indicator | Green LED (power ON), yellow LED (output) |
| Connection | 2 m PVC cable |
| Mounting Type | Universal mounting bracket (ACD34-MB01), M3 screws or adhesive pads |
| Housing Material | PC/PBT |
| Protection Category | IP 65, IP 66, IP 67, IP 68, IP 69K |
| Operating Temperature (°C) | -25…+80 (storage -40…+85) |
| Dimensions | 8 x 16 x 34 mm |
| Approvals | CE, cULus (UL508 + C22.2), ECOLAB |
| Response Time | ≤ 50 ms; power-on delay < 300 ms |
