To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Carlo Gavazzi |
| Manufacturer Product Number | CB32CLN20TO |
| Description | Capacitive Sensor; 20 mm (2–20 mm adjustable); Ø 32 mm; 2-wire AC; NO |
| Datasheet | Download Datasheet |

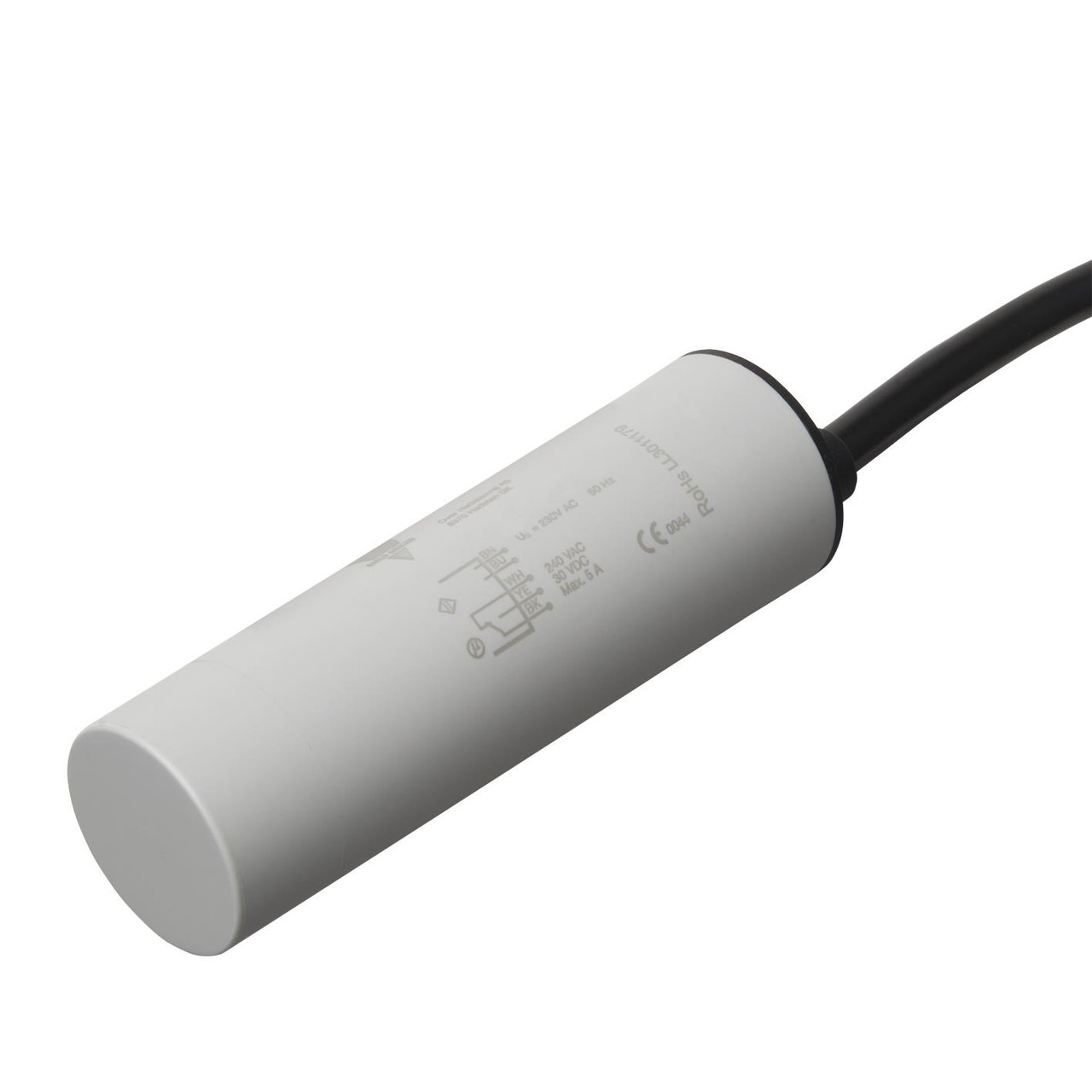

The Carlo Gavazzi CB32CLN20TO is a Ø 32 mm non-flush capacitive proximity sensor with a 20 mm (2–20 mm adjustable) sensing range, 2-wire AC NO output and a 20–250 V AC supply.
Adjustment: multiturn potentiometer, factory set at 12 mm. Output current 500 mA. Power-on delay ≤ 100 ms. Indicator: yellow LED (output ON). It has a 2 m PVC cable and a PBT housing. IP 67; operating temperature -20 to +70 °C (storage -40…+85). Approvals: CE.
| Category | |
| Manufacturer | Carlo Gavazzi |
| Model | CB32CL |
| Body Style | Cylindrical Smooth |
| Housing Diameter | Ø 32 mm |
| Sensing Range | 20 mm (2–20 mm adjustable) |
| Sensing Face | Non-flush |
| Output Type | 2-wire AC |
| Output Function | NO |
| Supply Voltage | 20–250 V AC |
| Load Current | 500 mA |
| Voltage Drop | ≤ 10 V AC (at loads ≥ 20 mA) |
| Repeatability | ≤ 5% |
| Short Circuit Protection | No (transients only) |
| Status Indicator | Yellow LED (output ON) |
| Connection | 2 m PVC cable |
| Housing Material | PBT |
| Protection Category | IP 67 |
| Operating Temperature (°C) | -20…+70 (storage -40…+85) |
| Approvals | CE |
| Sensitivity Adjustment | Multiturn potentiometer, factory set at 12 mm |
| Response Time | Power-on delay ≤ 100 ms |
