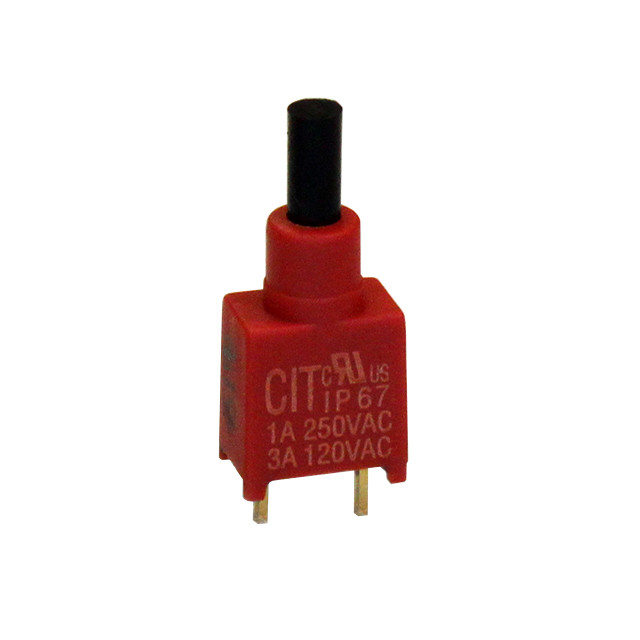

CIT Relay and Switch BSP10TCQ
Product Description
Pushbutton Swtich • Mounting Type: Through Hole • Circuit: SPST-NO • Switch Function: OFF-(ON) • Mounting Type: Through Hole • Actuator Type: Round, Plunger, 5.46mm • Actuator Marking: No Marking • Color - Actuator/Cap: Black • Termination Style: PC Pin • Contacts: Silver Plated
|
|
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Mounting Type | Through Hole |
| Type | Standard |
| Circuit | SPST-NO |
| Switch Function | OFF-(ON) |
| Current Rating (Amps) | 3A (AC/DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Round, Plunger, 5.46mm |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Black |
| Illumination | None |
| Termination Style | PC Pin |
| Contacts | Silver Plated |
| Electrical Life | 30,000 cycles typical |
| Contact Resistance | <20m? initial @ 2-4VDC, 100mA |
| Dielectric Strength | 1000Vrms min |
| Insulation Resistance | >100M? min |
| Operating Temperature | -40ºC to 85ºC |
| Storage Temperature | -40ºC to 85ºC |
| Sealing Degree | IP67 |
