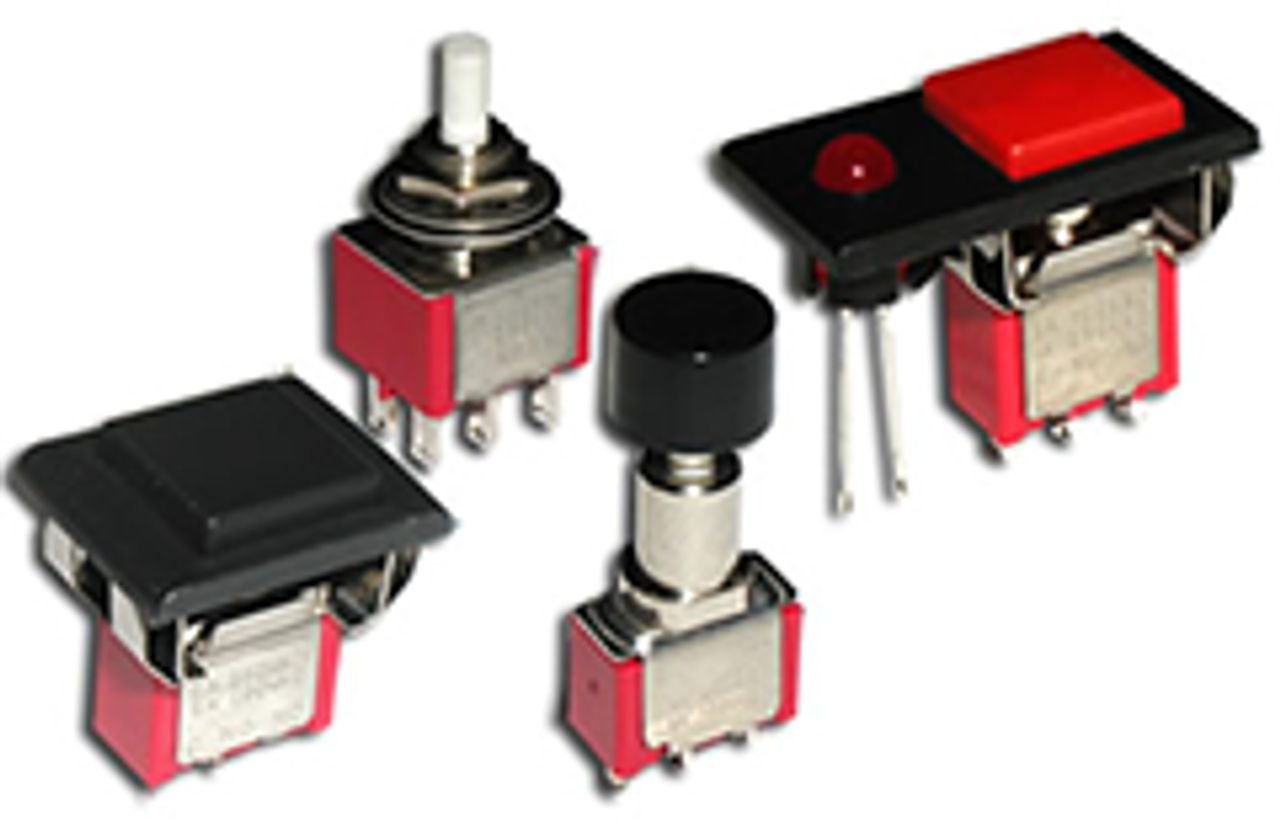

CIT Relay and Switch ANP21W3REF7622
Product Description
Pushbutton Switch • Mounting Type: Panel Mount, Rear • Type: Standard • Circuit: DPDT • Switch Function: ON - (ON) • Current Rating (Amps): 3A (AC/DC) • Voltage Rating - AC: 120 V • Voltage Rating - DC: 28 V • Actuator Type: Round, Plunger • Color - Actuator/Cap: White • Termination Style: - • Bushing:
Product Information Resources
Product Attribute Attribute Value Mounting Type Panel Mount, Rear Type Standard Circuit DPDT Switch Function ON - (ON) Current Rating (Amps) 3A (AC/DC) Voltage Rating - AC 120 V Voltage Rating - DC 28 V Actuator Type Round, Plunger Actuator Marking No Marking Color - Actuator/Cap White Actuator Cap / Frame F7622 Termination Style - Contacts Gold Plated Sealed Epoxy Sealed Bushing - Panel Cutout Dimensions - Electrical Life 50,000 cycles typical Contact Resistance <20m? initial @ 2-4VDC, 100mA Actuator Travel 0.85mm ± 0.2mm Dielectric Strength 1500Vrms min Insulation Resistance >1000M? min Operating Temperature -40oC to 85oC Storage Temperature -40oC to 85oC
ANP Series Pushbutton Switch Series Description: The ANP series mini pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the ANP offers numerous bushing options, cap styles and cap colors.
Mini Pushbutton Switch
Wide Variety of Terminals
Panel Mount
Gold Contacts Available
