Product Description
Description: Pushbutton Swtich • Number of Poles: 2 • Contact Configuration: DPDT • Switch Function: ON - (ON) • Bushing: - • Terminals: - • Contacts: Gold over Silver plated • Sealed: Epoxy Sealed • Actuator Cap / Frame: F7622
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Number of Poles | 2 |
| Contact Configuration | DPDT |
| Switch Function | ON - (ON) |
| Bushing | - |
| Terminals | - |
| Contacts | Gold over Silver plated |
| Sealed | Epoxy Sealed |
| Actuator Cap / Frame | F7622 |
| Electrical Ratings | 3A @ 120VAC, 28VDC 1A @ 250VAC |
| Electrical Life | 50,000 cycles typical |
| Contact Resistance | <20m? initial @ 2-4VDC, 100mA |
| Actuator Travel | 0.85mm ± 0.2mm |
| Dielectric Strength | 1500Vrms min |
| Insulation Resistance | >1000M? min |
| Operating Temperature | -40oC to 85oC |
| Storage Temperature | -40oC to 85oC |
| Series Features |
| ANP Series Pushbutton Switch |

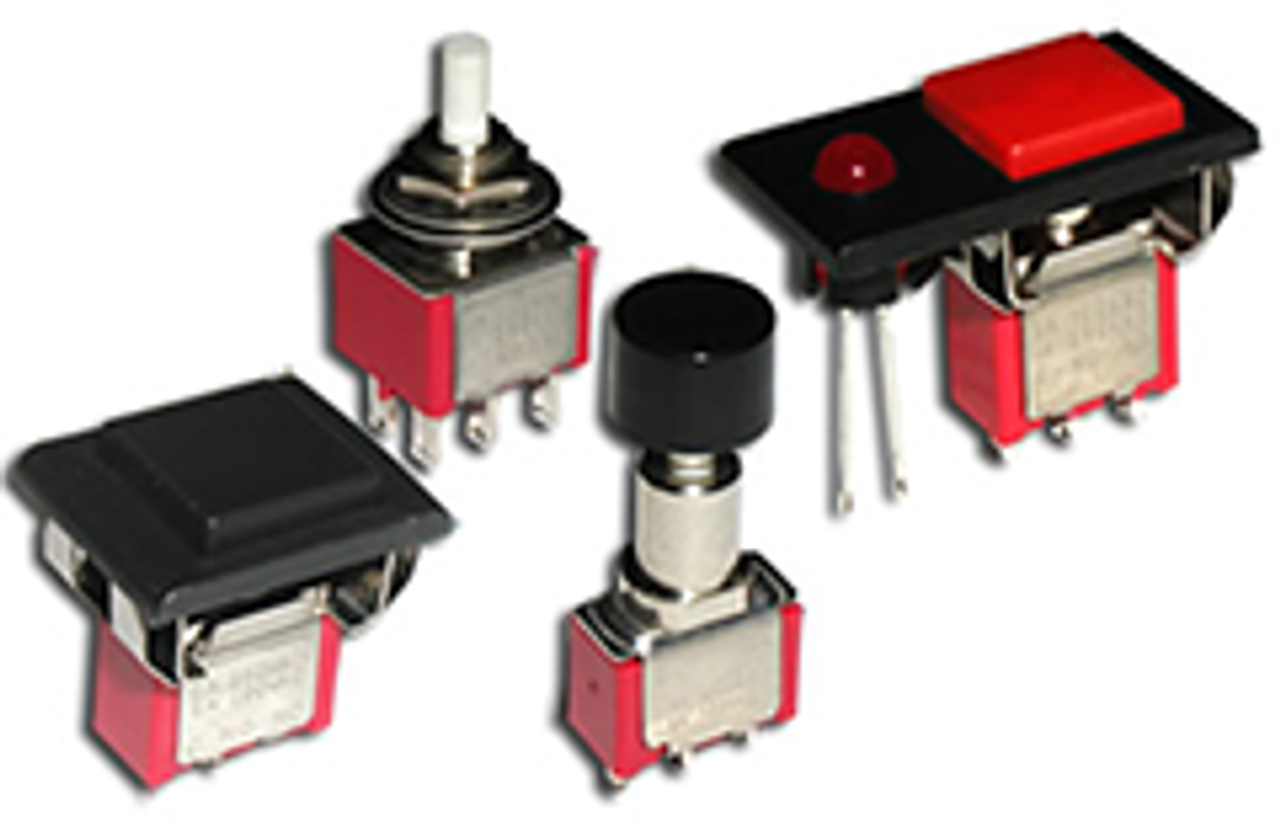

| Series Description: The ANP series mini pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the ANP offers numerous bushing options, cap styles and cap colors. |
|
