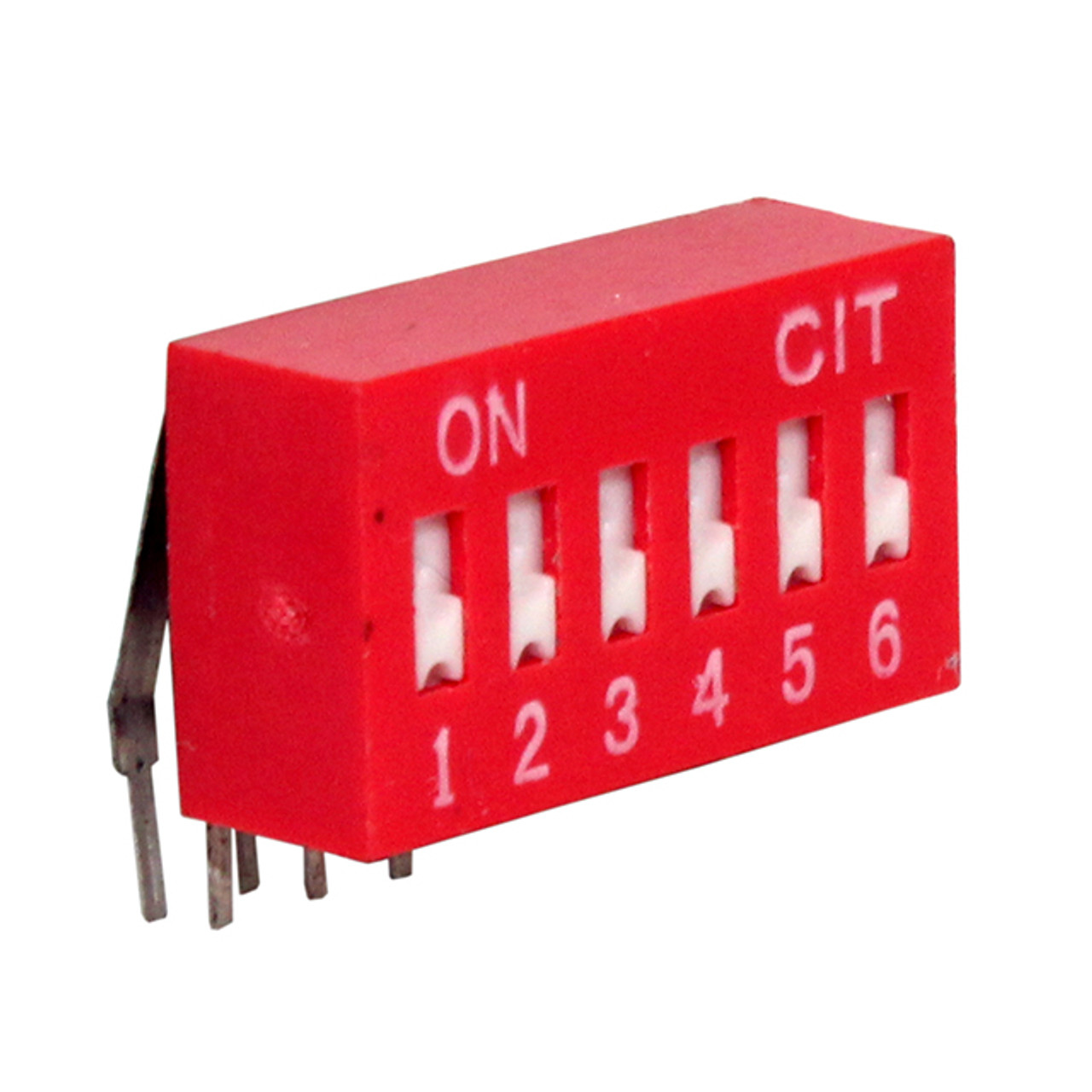

Product Description
Description: DIP Switch • Circuit: SPST • Number of Positions: 6 • Voltage Rating: 24VDC • Actuator Type: Slide (Standard) • Actuator Level: Flush, Recessed • Mounting Type: Through Hole, Right Angle • Termination Style: PC Pin • Pitch: 0.100" (2.54mm), Full
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Circuit | SPST |
| Number of Positions | 6 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Height Above Board | 0.378" (9.60mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Operating Temperature | -40°C ~ 85°C |
| Series Features |
| KR Series Right Angle DIP Switch |
| Series Description: The KR Series is a right-angle DIP switch with extended or recessed actuator options. Positions range from 02 to 12. This through-hole switch offers gold over nickel plated phosphor bronze contacts and terminals. Packaging is tube style |
|
