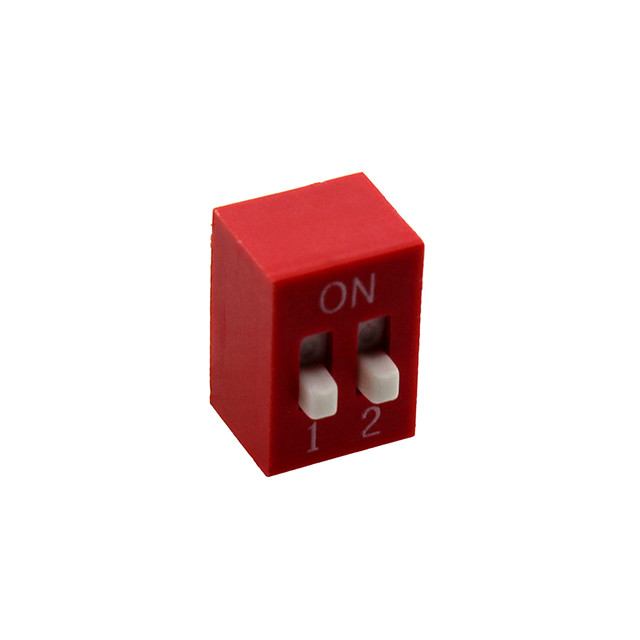

CIT Relay and Switch KR02E
Product Description
Description: DIP Switch • Circuit: SPST • Number of Positions: 2 • Voltage Rating: 24VDC • Actuator Type: Slide (Standard) • Actuator Level: Raised • Mounting Type: Through Hole, Right Angle • Termination Style: PC Pin • Pitch: 0.100" (2.54mm), Full
Product Information Resources
Product Attribute Attribute Value Circuit SPST Number of Positions 2 Current Rating (Amps) 25mA Voltage Rating 24VDC Actuator Type Slide (Standard) Actuator Level Raised Contact Material Phosphor Bronze Contact Finish Gold Height Above Board 0.378" (9.60mm) Mounting Type Through Hole, Right Angle Termination Style PC Pin Pitch 0.100" (2.54mm), Full Washable No Operating Temperature -40°C ~ 85°C
KR Series Right Angle DIP Switch Series Description: The KR Series is a right-angle DIP switch with extended or recessed actuator options. Positions range from 02 to 12. This through-hole switch offers gold over nickel plated phosphor bronze contacts and terminals. Packaging is tube style
Right Angle Dual Inline Package Switch
Extended or Recessed Actuator Option
Top Tape Seal Option
