Product Description

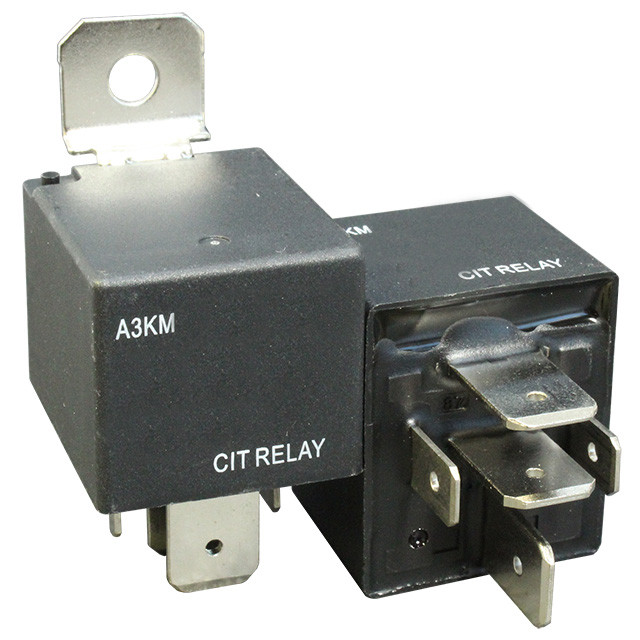

CIT Relay and Switch A3K Series Auto Relay;Chas Mnt w/flng mnt; PC Pin; 24VDC; 1A SPST-NO; 80 A;Standard;Magnetic Blowout
Automotive Relay • Coil Voltage: 24VDC • Contact Configuration: 1A SPST-NO • Contact Rating (Current): 80 A • Mounting Type: Chassis Mount • Termination Style: PC Pin • Coil Type: Single Side Stable • Sealed: Sealed • Coil Power: 1.6 W • Coil Suppression: Standard • Features: Magnetic Blowout
Product Information
| Manufacturer | CIT Relay and Switch |
| Product Category | Relay |
| Product Sub Category | Automotive Relay |
| Series | A3K Series |
| Catalog Part Number | A3KM1ASP24VDC1.6 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Coil Voltage | 24VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (Current) | 80 A |
| Mounting Type | Chassis Mount |
| Termination Style | PC Pin |
| Coil Type | Single Side Stable |
| Sealed | Sealed |
| Coil Power | 1.6 W |
| Coil Suppression | Standard |
| Features | Magnetic Blowout |
| Contact Resistance | < 50 milliohms initial |
| Contact Material | AgSnO<sub>2</sub> |
| Maximum Switching Voltage | 145VDC - Max |
| Maximum Switching Current | Make : 150A@14VDC for 3 seconds Break : 80A |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Max. Continuous (VDC) | 31.2 |
| Coil Resistance +/- 10% (Ohms) | 360 |
| Pick Up Voltage VDC (max) 70% of rated voltage | 15.6 VDC |
| Release Voltage VDC (min) 10% of rated voltage | 2.4 VDC |
| Electrical Life @ rated load Mechanical Life | 100K cycles, average |
| Mechanical Life | 500K cycles, average |
| Insulation Resistance | 1000M Ω min. @ 500VDC initial |
| Dielectric Strength | Coil to contact: 750V rms min. @ sea level initial; Contact to Contact: 500V rms min. @ sea level initial |
| Shock Resistance | Functoinal: 42m/s<sup>2</sup> (4.4G) Destructive: 288m/s<sup>2</sup> (30G) |
| Vibration Resistance | 0.5mm 10~500Hz double amplitude (10G) |
Series Features
A3K Series Automotive Relay
- Maxi ISO Sized Automotive Relay
- Internal Blowout Magnets
- Capable of Switching up to 145VDC
- Suitable for DC Motor and Lamp Control
- PCB Pin and Quick Connect Mounting Options
