Product Description
|
|
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Coil Voltage | 24VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (Current) | 80 A |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Coil Type | Single Side Stable |
| Coil Current | 66.7 mA |
| Coil Power | 1.6 W |
| Coil Suppression | Standard |
| Features | Magnetic Blowout |
| Contact Resistance | < 50 milliohms initial |
| Contact Material | AgSnO2 |
| Maximum Switching Voltage | 145VDC - Max |
| Maximum Switching Current | Make : 150A@14VDC for 3 seconds Break : 80A |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Max. Continuous (VDC) | 31.2 |
| Coil Resistance +/- 10% (Ohms) | 360 |
| Pick Up Voltage VDC (max) 70% of rated voltage | 15.6 VDC |
| Release Voltage VDC (min) 10% of rated voltage | 2.4 VDC |
| Electrical Life @ rated load Mechanical Life | 100K cycles, average |
| Mechanical Life | 500K cycles, average |
| Insulation Resistance | 1000M ? min. @ 500VDC initial |
| Dielectric Strength | Coil to contact: 750V rms min. @ sea level initial; Contact to Contact: 500V rms min. @ sea level initial |
| Shock Resistance | Functoinal: 42m/s2 (4.4G) Destructive: 288m/s2 (30G) |
| Vibration Resistance | 0.5mm 10~500Hz double amplitude (10G) |
| Operating Temperature | -40°C ~ 125°C |
| Storage Temperature | -40oC to +155oC |
| Solderability | 260oC for 5 s |
| Series Features |

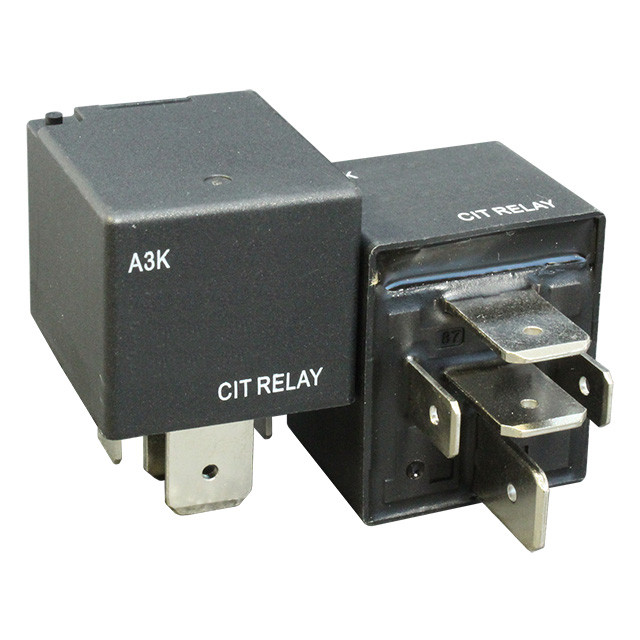

| A3K Series Automotive Relay |
| Series Description: |
|
