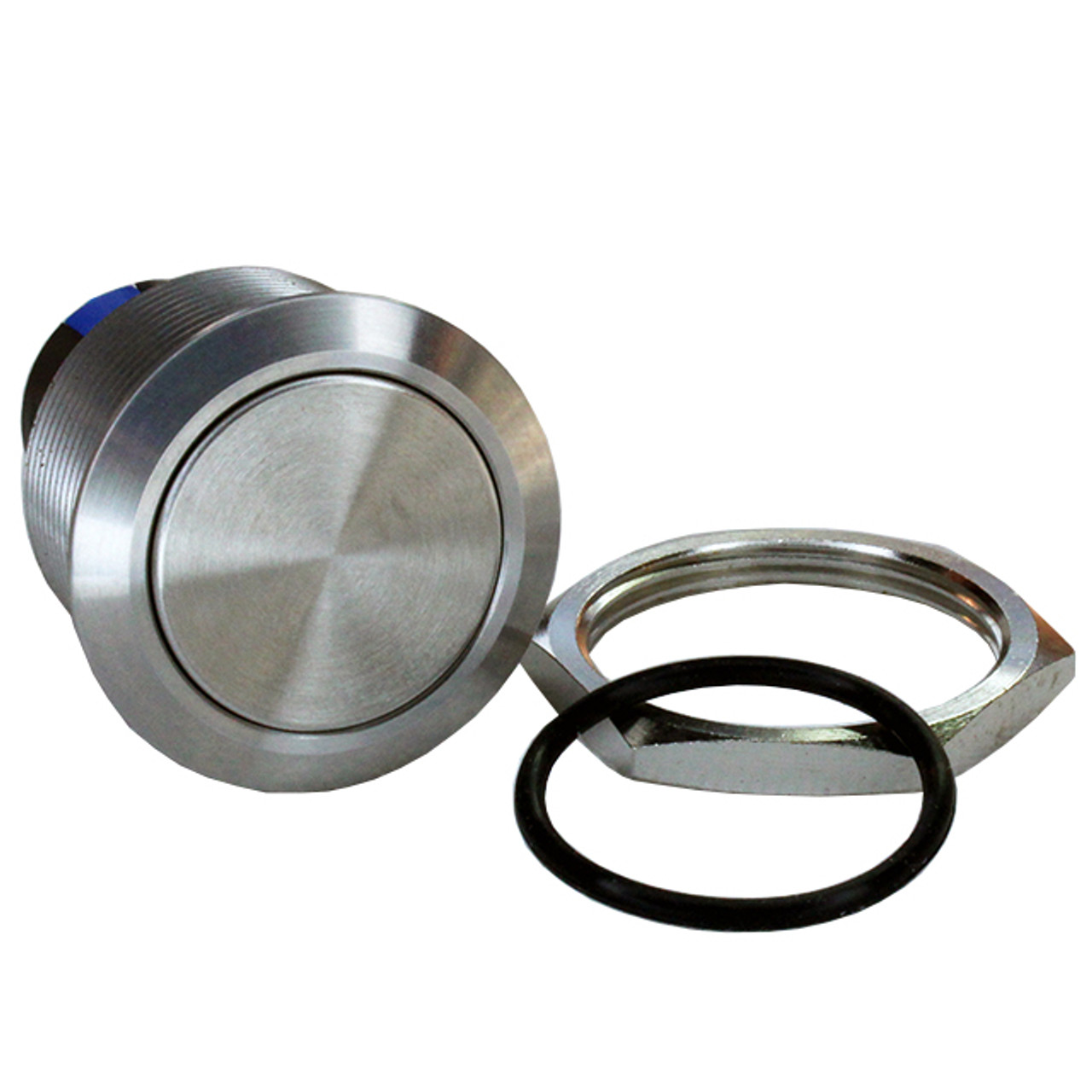

CIT Relay and Switch DH22U1NASZZ
This item is subject to a Tariff Surcharge of 45% that will be added to your cart during check-out.
Product Description
Pushbutton Swtich • Mounting Type: Panel Mount, Front • Type: Anti-Vandal • Circuit: SPDT • Switch Function: On-Mom • Current Rating (Amps): 3A (AC) • Voltage Rating - AC: 125 V • Actuator Type: Round, Button, Flush • Color - Actuator/Cap: Silver • Illumination Type, Color: - • Termination Style: Solder Lug
Product Information Resources
Product Attribute Attribute Value Mounting Type Panel Mount, Front Type Anti-Vandal Circuit SPDT Switch Function On-Mom Current Rating (Amps) 3A (AC) Voltage Rating - AC 125 V Voltage Rating - DC - Actuator Type Round, Button, Flush Actuator Marking No Marking Color - Actuator/Cap Silver Illumination Type, Color - Illumination Voltage (Nominal) - Termination Style Solder Lug Ingress Protection IP67 - Dust Tight, Waterproof Features Stainless Steel Panel Cutout Dimensions Circular - 22.00mm Dia Operating Temperature -20°C ~ 55°C
DH22U Series Pushbutton Switch Series Description: The DH22U Series is our UL approved version of the DH Series. Currently only available in 22mm size, the DH22U is IP65 vandal and splash resistant. Available in both momentary and latching with a flush ring illuminated actuator, the DH22U has body finish options of stainless steel or black anodized aluminum. LED voltage ranges from 6VDC to 220VAC. LED options are red, yellow, green, blue and white.
UL Approved
22mm
IP67 Sealing Degree
Vandal Proof
Ring Illumination
Panel Mount
Product Videos
Custom Field
Tariff Rate 45%
RoHS Compliant
