Product Description

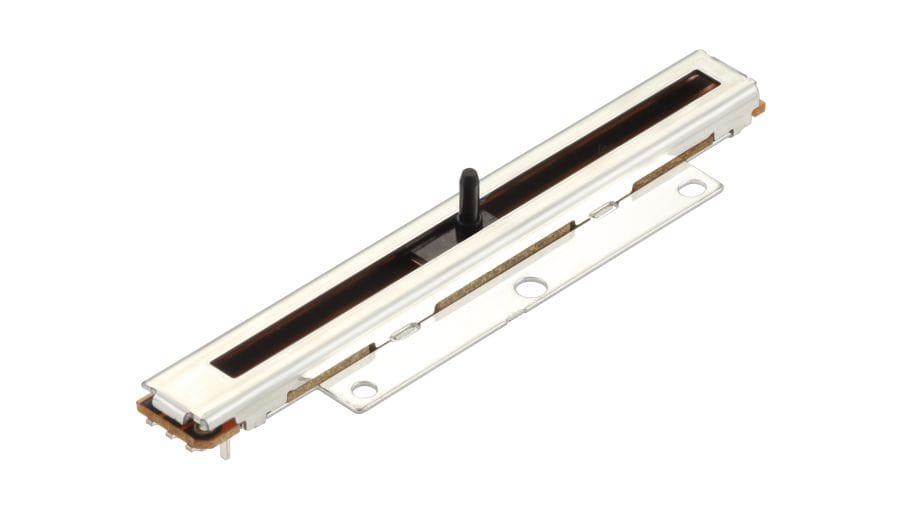

AlpsAlpine RDC11 Series Resistive Pos Sensor; Linear; Trvl 47mm; Vertical; 10kΩ; Linearity 45mm ±0.5%
Resistive Position Sensor • Type: Linear • Travel: 47mm • Control part orientation: Vertical • Total resistance: 10kΩ • Linearity guarantee range: 45mm • Linearity: ±0.5%
Product Information
| Manufacturer | AlpsAlpine |
| Product Category | Position, Proximity, Speed (Modules) |
| Product Sub Category | Resistive Position Sensor |
| Series | RDC11 Series |
| Catalog Part Number | RDC1047A03 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Type | Linear |
| Travel | 47mm |
| Control part orientation | Vertical |
| Total resistance | 10kΩ |
| Linearity guarantee range | 45mm |
| Linearity | ±0.5% |
| Operating life | 200,000 cycles |
| Rated voltage | 5V DC |
| Length of lever | 4.4mm |
| Length of terminal | 2.0mm |
| Dimensions | 6.9×56.5×3.0mm |
| Operating temperature range | -30℃ to +85℃ |
| Mechanical performance | Operating force 0.25N max. |
| Electrical performance | Total resistance tolerance ±30% |
Series Features
Linear Type RDC10 Series
Series DescriptionHigh-precision (±0.5% relative linearity) space-saving design, contributing to set miniaturization.
Series ApplicationsEnergy_Industrial： Robots, drones
Game： Home handheld consoles,Virtual/augmented reality
Healthcare： Healthcare equipment,Analysis, test equipment
Nursing care equipment： Nursing care equipment
Home： Major home appliances,Office equipment
Automotive： Navigation/audio systems, HVAC
