Product Description

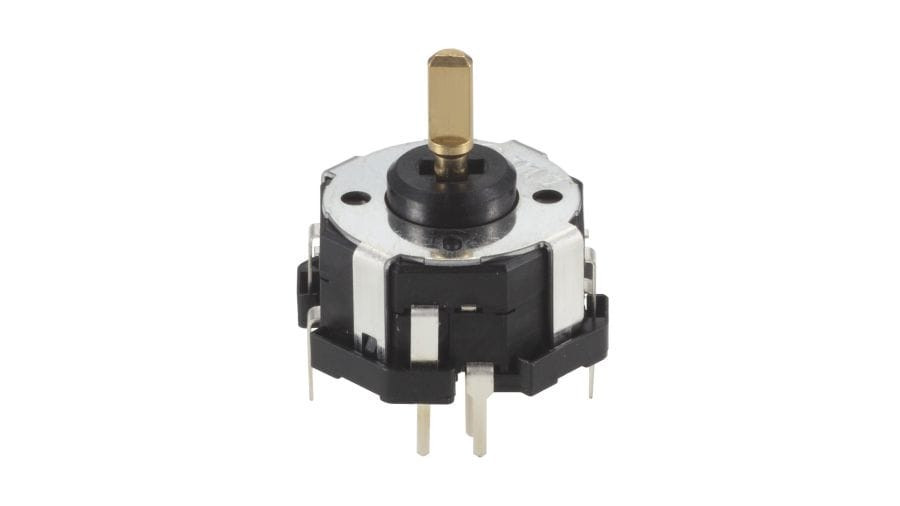

AlpsAlpine RKJXT1F Series Multi Direction Switch; Metal; 4-direction; Travel:0.3±0.2mm; 30 Detent / 15 Pulse
Navigation, Multi-Direction Switches, Joystick • Number of operating shafts: Single-shaft • Shaft material: Metal • Directional resolution: 4-direction • Operating angle (Directions): Each direction 9°max. • Travel (Center push): 0.3±0.2mm • Number of detent: 30 • Number of pulse: 15 • Dimensions (W×D×H): 17.0×17.0×10.5mm
Product Information
| Manufacturer | AlpsAlpine |
| Product Category | Navigation, Multi-Direction Switches, Joystick |
| Product Sub Category | Multi Direction Switch |
| Series | RKJXT1F Series |
| Catalog Part Number | RKJXT1F42001 |
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Number of operating shafts | Single-shaft |
| Shaft material | Metal |
| Directional resolution | 4-direction |
| Operating angle (Directions) | Each direction 9°max. |
| Travel (Center push) | 0.3±0.2mm |
| Number of detent | 30 |
| Number of pulse | 15 |
| Dimensions (W×D×H) | 17.0×17.0×10.5mm |
| Operating temperature range | -40℃ to +85℃ |
| Ratings (max.) (Resistive load) | 10mA 5V DC |
Series Features
4-directional Stick Switch (with Encoder + Center-push Function) RKJXT1F Series
Series DescriptionAutomotive-compatible multifunctional device with a 17×17mm round body, offering 1-axis 4-direction/push/encoder functions.
- Directional resolution：4-direction
- Ratings (max.) (Resistive load)：10mA 5V DC
- Operating temperature range：-40℃ to +85℃
Audio_TV： Visual
Automotive： Navigation/audio systems, HVAC
