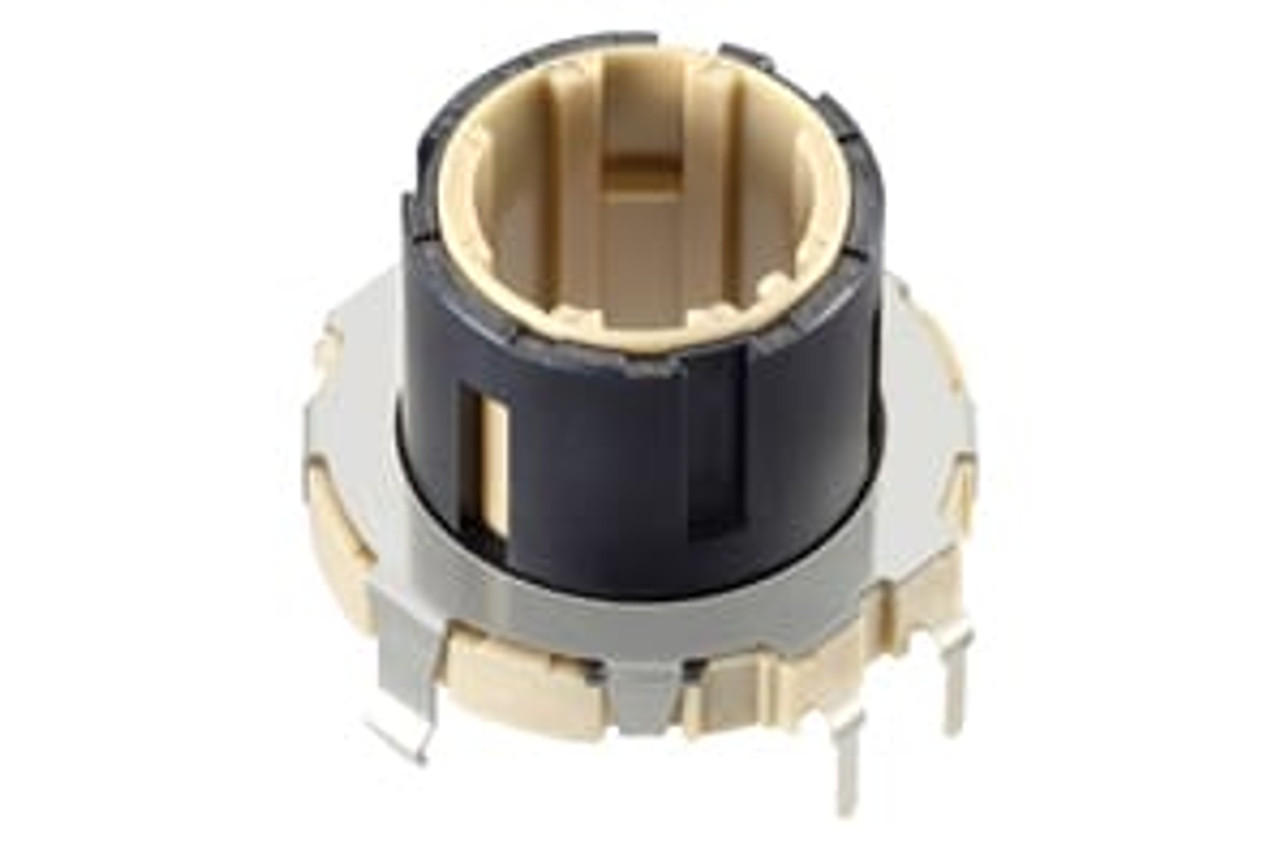

  • AlpsAlpine EC21A1520407 Ring Type Encoder - Incremental
    • AlpsAlpine EC21A1520407 Ring Type Encoder - Incremental

    EC21A1520407

    AlpsAlpine

    $0.00

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Standard Price
    100 250 500 1200
    $2.12 $2.04 $1.89 $1.77
    Request a Quote
    Technical Help

    Product Description

    Ring Type Encoder - Incremental • Actuator Length: 15.0mm • Detent Torque: 16±7mN·m • Number of detent: 30 • Number of pulse: 15 • Dimensions: 21mm

    Factory Lead Time 12 - 16 Weeks
    Minimum Order Quantity
    (When Not in Stock)     		1200
          Product Information       Resources
    ManufacturerE-Switch
    Product Category Encoder
    Product Sub Category Ring Type Encoder - Incremental
    SeriesEC21A Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Actuator Length15.0mm
    Detent Torque16±7mN·m
    Number of detent30
    Number of pulse15
    Dimensions21mm
          Series Features
    21mm Size Ring Type EC21A/EC21C Series
    Series Description: Ring encoder with 4mm height contribute to space saving and multifunctioning. Output : Incremental (Two phase A and B) ? Size : 21mm size ? Number of detent : 18 / 30 ? Number of pulse (Positions) : 9 / 15 ? Operating life : 50,000 cycles ? Rating (max.) : 10mA 5V DC
    Series Application: Home: Major home appliances, Office equipment
    Audio / TV: Visual
    Automotive: Navigation/audio systems, HVAC
