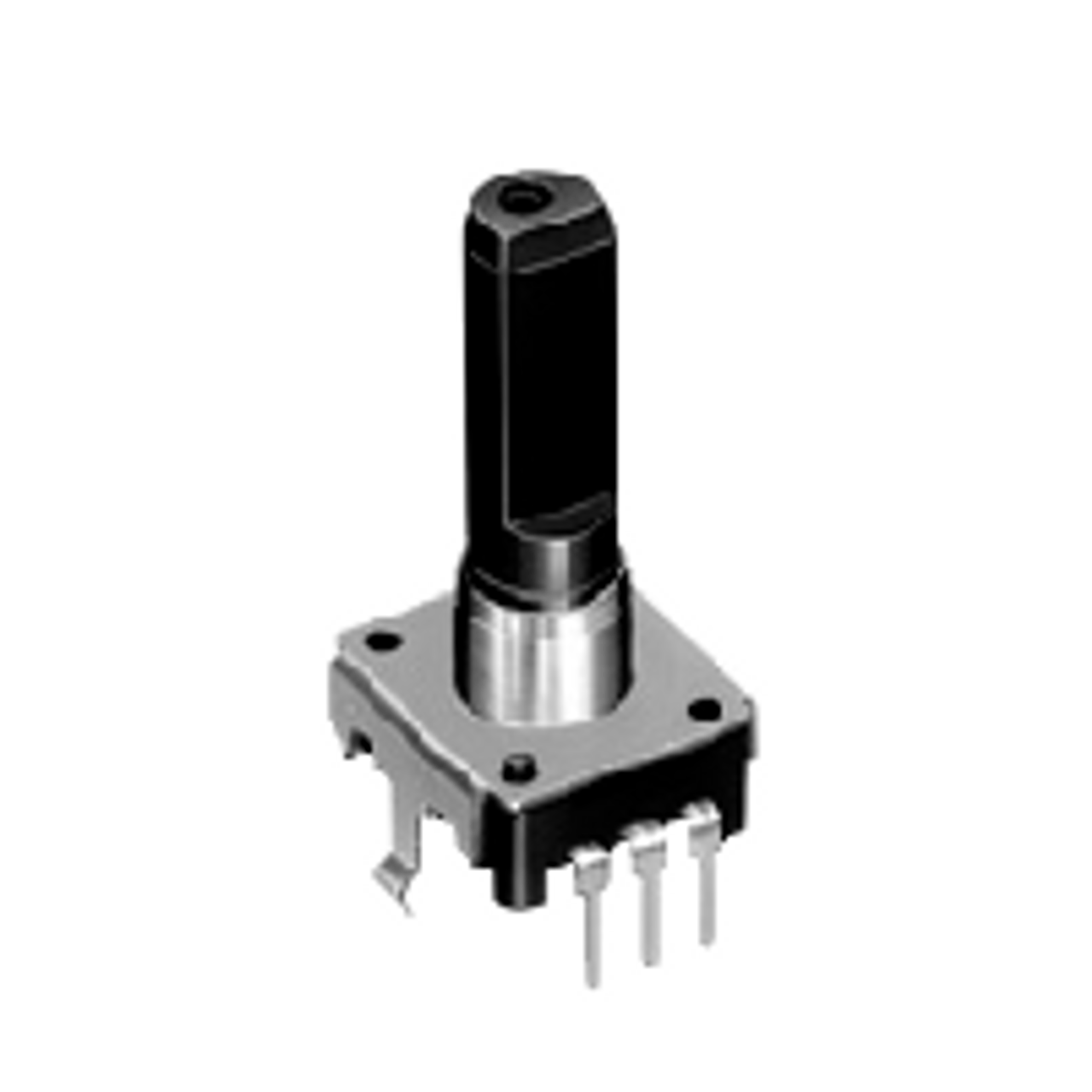

  • AlpsAlpine EC12E24404A8 Incremental Type Encoder
    • AlpsAlpine EC12E24404A8 Incremental Type Encoder

    EC12E24404A8

    AlpsAlpine

    $0.00

    This item is out of stock. Please submit an RFQ or call 800-526-5376 for pricing and delivery.

    Bulk Pricing

    Qty.Standard Price
    1 50 100 250 500 1000 2400
    $1.72 $1.38 $1.10 $1.06 $0.98 $0.92 $0.86
    Request a Quote
    Technical Help

    Product Description

    Incremental Type Encoder • Shaft Type: Insulated Shaft • Actuator Length: 20.0mm • Detent Torque: 3±2mN?m • Number of detent: 24 • Number of pulse: 24 • Control part orientation: Vertical • Dimensions: 12mm • Type: Standard • :

    Factory Lead Time 12 - 16 Weeks
    Minimum Order Quantity
    (When Not in Stock)     		2400
          Product Information       Resources
    ManufacturerE-Switch
    Product Category Encoder
    Product Sub Category Incremental Type Encoder
    SeriesEC12E Series

      Download Datasheet

      RoHS Compliant
          Specifications
    Product Attribute
    		Attribute Value
    Shaft TypeInsulated Shaft
    Actuator Length20.0mm
    Detent Torque3±2mN?m
    Number of detent24
    Number of pulse24
    Control part orientationVertical
    Dimensions12mm
    TypeStandard
          Series Features
    12mm Size Insulated Shaft Type EC12E Series
    Series Description: Insulated shaft type with a wide variety of applications. Output : Incremental (Two phase A and B) ? Size : 12mm size ? Number of detent : 12 / 24 / Without ? Number of pulse (Positions) : 12 / 24 ? Operating life : 30,000 cycles ? Rating (max.) : 0.5mA 5V DC
    Series Application: Energy / Industrial: Converters
    Home: Major home appliances
    Audio / TV: Visual, Audio, Pro audio
