To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | ANT-DK-WLA1EM60-I0150 |
| Description | WiFi Antenna; WLAN Embedded Antenna; WLAN; 2.4~2.5/4.9~5.8 GHz; IPEX |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |
| Brochure | Download Brochure |

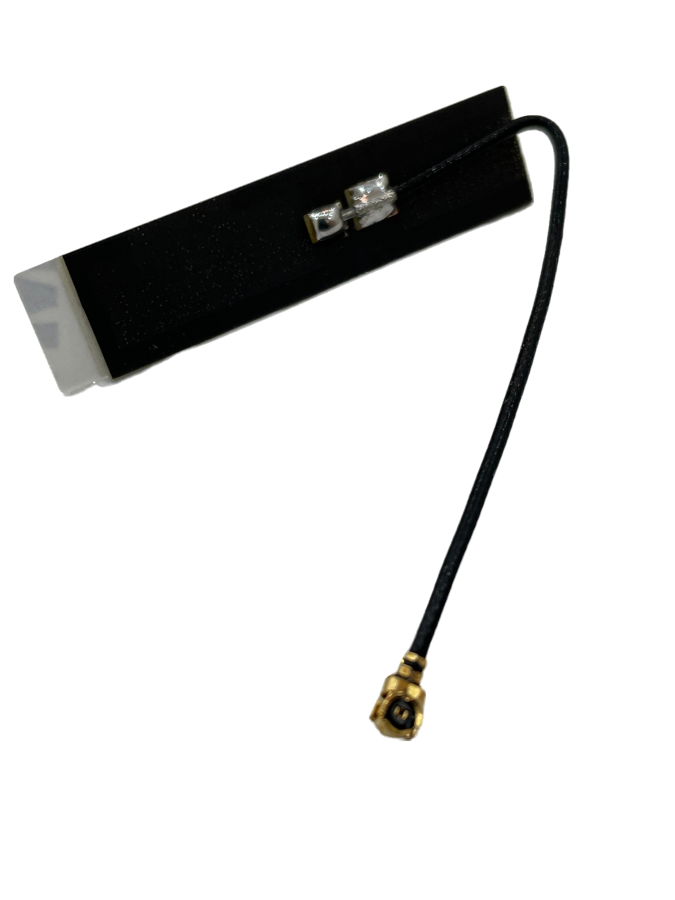

The Adam Tech ANT-DK-WLA1EM60-I0150 is a WLAN Embedded antenna for WLAN. Frequency range: 2.4~2.5/4.9~5.8 GHz. Gain: 2dBi. VSWR: 2.0. Impedance: 50 Ohms. Connector: IPEX.
Operating temperature -40°C ~ 80°C.
| Category | |
| Manufacturer | Adam Tech |
| Connector Type | IPEX |
| Antenna Type | WLAN Embedded Antenna |
| Technology | WLAN |
| Frequency Range | 2.4~2.5/4.9~5.8 GHz |
| Gain | 2dBi |
| Impedance | 50 Ohms |
| VSWR | 2.0 |
| Operating Temperature | -40°C ~ 80°C |
