To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | MSBH-G-30 |
| Description | Shunt; 2-position; .100" [2.54mm]; Shunt (jumper); Gold |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

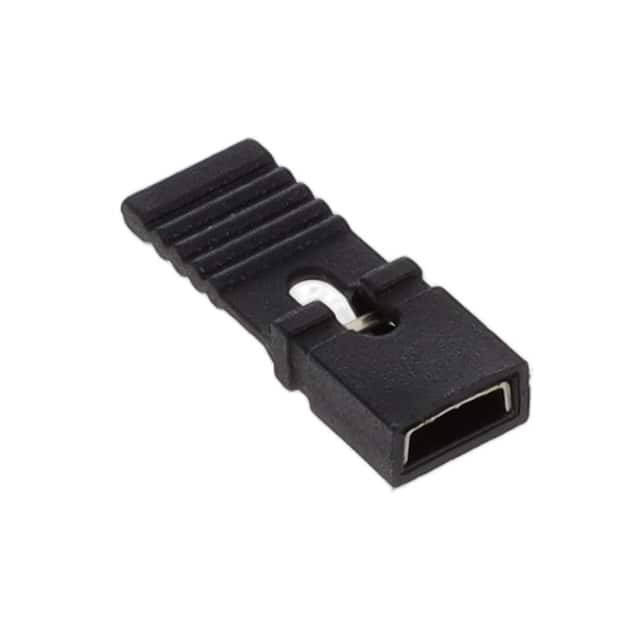

The Adam Tech MSBH-G-30 is a shunt (jumper) for 2.54 mm (.100 in) pitch pin headers. It bridges two adjacent header pins to set a circuit option. Style: handle top, .531".
Contacts: phosphor bronze, 30u" gold over nickel underplate overall.
Current rating: 3 A max. Operating temperature -55 °C to +105 °C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Type | Shunt (jumper) |
| Gender | Female |
| Number of Positions | 2 |
| Pitch | .100" [2.54mm] |
| Contact Finish | Gold |
| Body Style | Handle Top, .531" |
| Contact Material | Phosphor Bronze |
| Plating Detail | 30u" Gold over Nickel underplate overall |
| Current Rating | 3 A max |
| Operating Temperature | -55...+105 |
| Approvals | UL Recognized File no. E224053 |
