To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | 08SH-A-04-TS-SMT-PP-T/R |
| Description | Board Connector; 4-position; .031" [0.80mm]; Vertical; Surface Mount; Tin; 0.5A AC/DC |
| Datasheet | Download Datasheet |

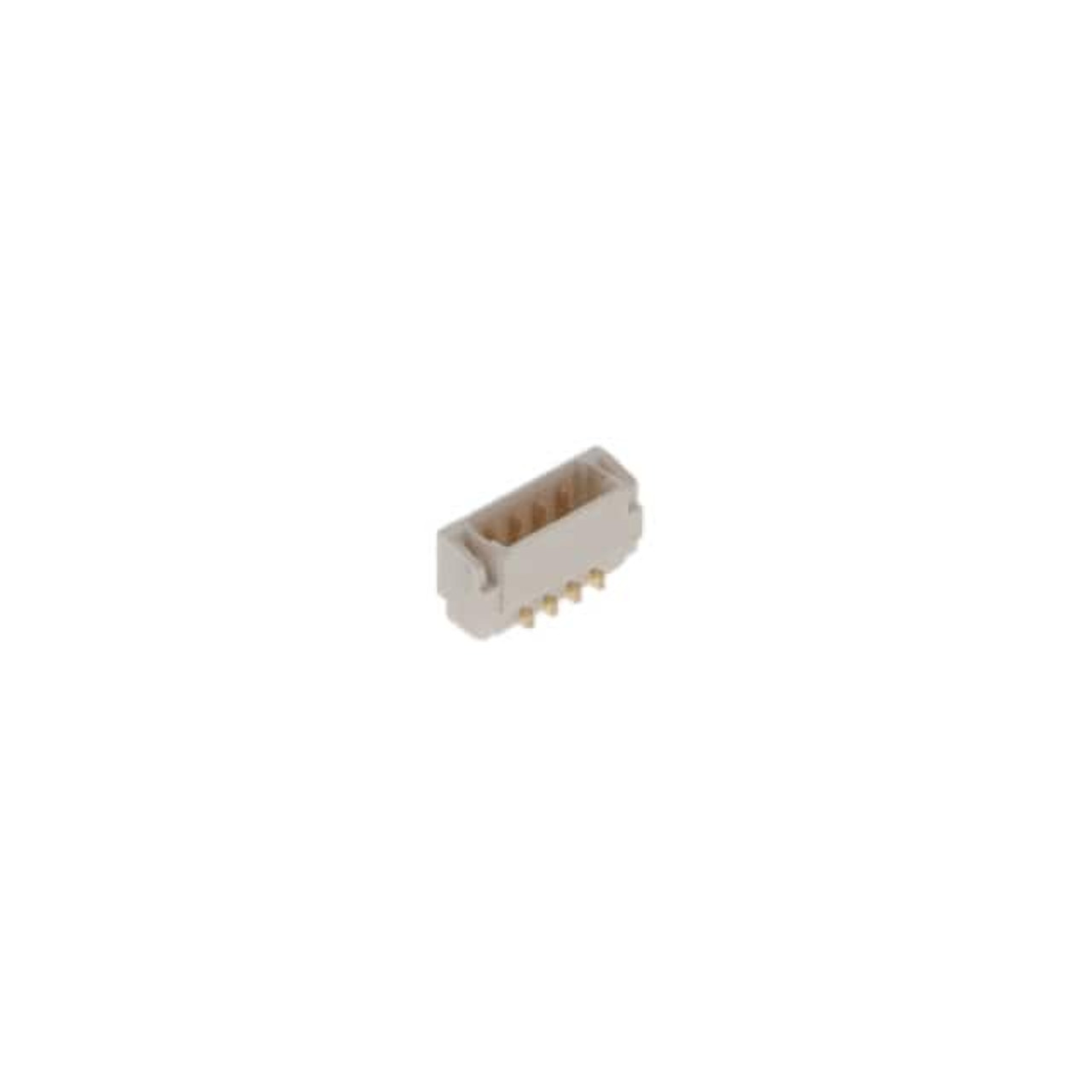

The Adam Tech 08SH-A-04-TS-SMT-PP-T/R is a 4-position, single-row, 0.8 mm (.031 in) pitch shrouded board header with male pins, vertical surface-mount to the PCB. It is the board half of Adam Tech's 08SH wire-to-board system: it mates with the 08CH crimp wire housing of the same pitch, position count and body style. Adam Tech body style A.
Contacts: phosphor bronze, matte tin over copper underplate overall. Insulator: Hi-Temp LCP, rated UL 94V-0; color: natural.
Current rating: 0.5A AC/DC. Voltage rating: 30V AC/DC. Operating temperature -25 °C to +85 °C.
Approvals: UL Recognized File no. E224053.
