To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | HDMI-S-R-NF-SMT |
| Description | HDMI Connector; Receptacle; 19; Surface Mount, Right Angle; Horizontal |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

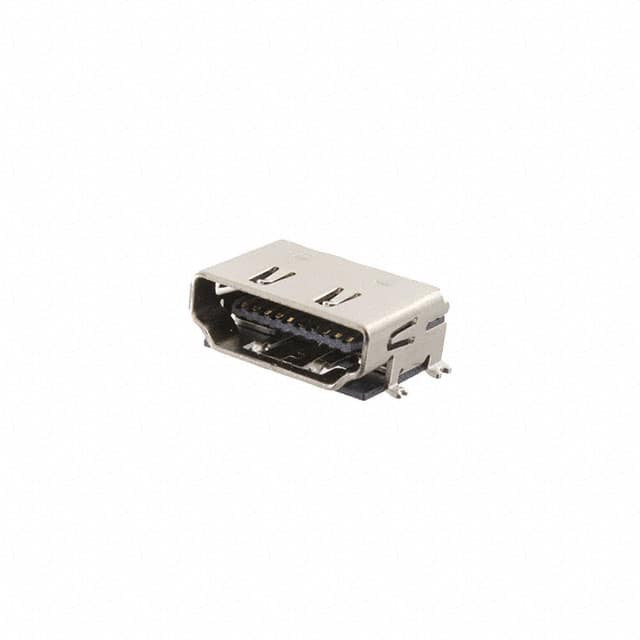

The Adam Tech HDMI-S-R-NF-SMT is an HDMI Type A receptacle. Contacts: 19. Mounting: surface mount, right angle; horizontal. Shielded. Features: reverse, no flange.
Shell: Brass, Tin plate over Nickel underplate.
Contacts: brass, gold flash over nickel underplate on contact area, tin over copper underplate on tails. Insulator: LCP, glass reinforced, rated UL 94V-0; color: black.
Current rating: 0.5 A max. Voltage rating: 40 VDC max. Operating temperature -20°C ~ 85°C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Number of Contacts | 19 |
| Gender | Receptacle |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Horizontal |
| Number of Ports | 1 Port |
| Shell Material | Brass, Tin plate over Nickel underplate |
| Type | HDMI Type A |
| Shielding | Shielded |
| Features | Reverse, No Flange |
| Insulator Material | LCP, glass reinforced, rated UL 94V-0; color: black |
| Contact Material | Brass |
| Plating Detail | Gold Flash over Nickel underplate on contact area, Tin over Copper underplate on tails |
| Current Rating | 0.5 A max. |
| Voltage Rating | 40 VDC max. |
| Operating Temperature | -20°C ~ 85°C |
| Approvals | UL Recognized File no. E224053 |
