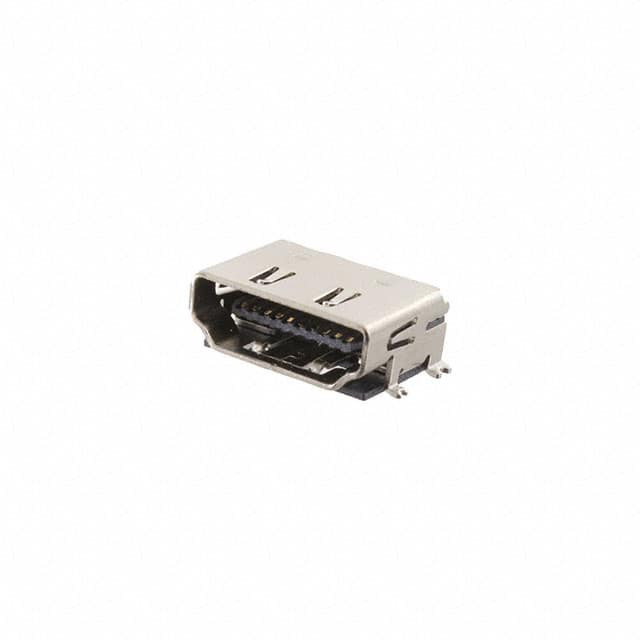

To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | HDMI-S-RA-SMT-MF |
| Description | HDMI Connector; Receptacle; 19; Surface Mount, Right Angle; Flange, Horizontal |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |
The Adam Tech HDMI-S-RA-SMT-MF is an HDMI Type A receptacle. Contacts: 19. Mounting: surface mount, right angle; flange, horizontal. Shielded.
Shell: Copper Alloy, Nickel Plated.
Contacts: copper alloy, gold over nickel underplate on mating area, tin over copper underplate on tails. Insulator: Hi-Temp Thermoplastic, rated UL 94V-0; color: black.
Current rating: 0.5 A Max. Voltage rating: 30V AC. Operating temperature -55°C ~ 85°C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Number of Contacts | 19 |
| Gender | Receptacle |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Flange, Horizontal |
| Number of Ports | 1 Port |
| Shell Material | Copper Alloy, Nickel Plated |
| Type | HDMI Type A |
| Shielding | Shielded |
| Insulator Material | Hi-Temp Thermoplastic, rated UL 94V-0; color: black |
| Contact Material | Copper Alloy |
| Plating Detail | Gold over nickel underplate on mating area, tin over copper underplate on tails |
| Current Rating | 0.5 A Max. |
| Voltage Rating | 30V AC |
| Operating Temperature | -55°C ~ 85°C |
| Approvals | UL Recognized File no. E224053 |
