To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | CA #EV02AT-003-3M |
| Description | EV Charging Cable; AC IEC 62196 Type 2 Male; 16 A; 250 VAC; 1 Phase; 3 m |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |
| Brochure | Download Brochure |

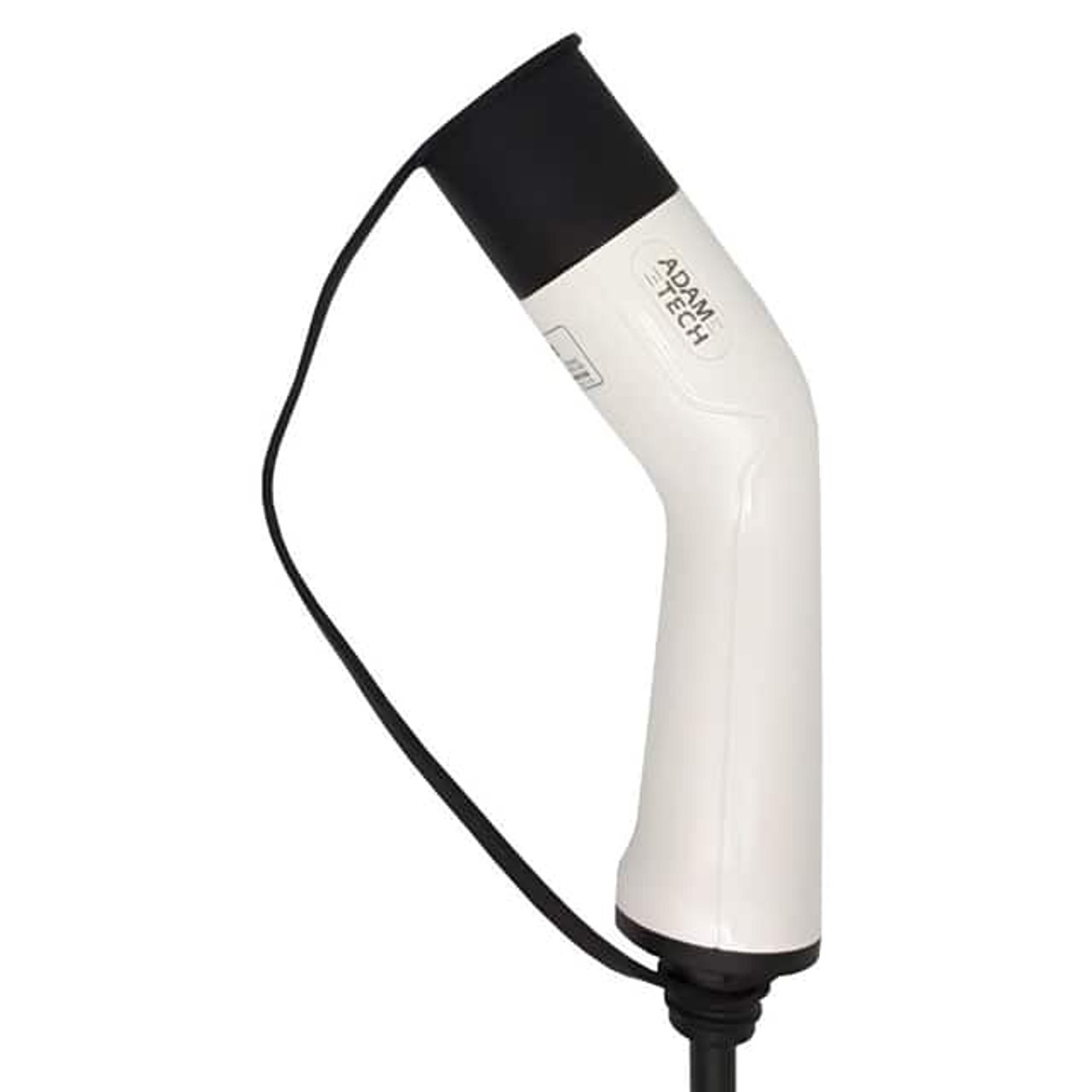

The Adam Tech CA #EV02AT-003-3M is an EV charging cable assembly with an AC IEC 62196 Type 2 Male connector, 16 A 250 VAC. Supply: AC, 1 phase. Cable: 3x2.5mm²+1x0.5mm² (outer leather material TPE), 3 m long. Standard: IEC62196-1 2014, IEC62196-2 2017 standard. Ingress protection: IP54.
Contacts: Copper Alloy, Silver plated surface.
Contact resistance: 0.5 mΩ max. Insulation resistance: 5000 MΩ min. Dielectric withstanding voltage: 2000 VAC. Operating temperature: -30°C ~ 50°C. Life: 10,000 cycles. Approvals: TUV.
| Category | |
| Manufacturer | Adam Tech |
| Product Type | EV Charging Cable Assembly |
| Connector Type | AC IEC 62196 Type 2 Male |
| Current Rating | 16 A |
| Voltage Rating | 250 VAC |
| Current Type | AC |
| Phase | 1 Phase |
| Cable Length | 3 m |
| Cable | 3x2.5mm²+1x0.5mm² (outer leather material TPE) |
| Color | White |
| Contact Material | Copper Alloy, Silver plated surface |
| Contact Resistance | 0.5 mΩ max |
| Insulation Resistance | 5000 MΩ min |
| Dielectric Withstanding Voltage | 2000 VAC |
| Ingress Protection | IP54 |
| Operating Temperature | -30°C ~ 50°C |
| Mating Cycles | 10000 |
| Standard | IEC62196-1 2014, IEC62196-2 2017 standard |
| Approvals | TUV |
