To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | DB25-SF-P1 |
| Description | D-Sub Connector; D-Sub; 25-pos; Receptacle, Female Sockets; Free Hanging (In-Line); IDC |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

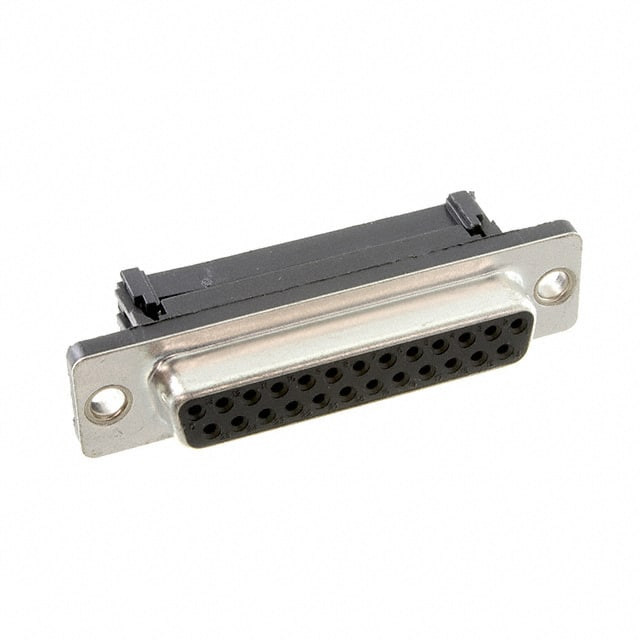

The Adam Tech DB25-SF-P1 is a 25-position D-Sub connector, receptacle, female sockets, shell size B (DB-25). Termination: IDC. Mounting: free hanging (In-Line).
Insulator: PBT, glass reinforced, rated UL 94V-0; color: black. Contacts: phosphor bronze, gold flash over nickel underplate, tin over copper underplate on IDC area. Shell: Steel, Tin or Zinc plated.
Current rating: 5 A max. Voltage rating: 250 VAC max. Operating temperature -65 °C to +125 °C.
| Category | |
| Manufacturer | Adam Tech |
| Gender | Receptacle, Female Sockets |
| Connector Style | D-Sub |
| Number of Positions | 25 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | IDC |
| Shell Material, Finish | Steel, Tin or Zinc plated |
| Shell Size, Connector Layout | B (DB-25) |
| Current Rating (A) | 5 A max |
| Insulator Material | PBT, glass reinforced, rated UL 94V-0; color: black |
| Contact Material | Phosphor Bronze |
| Plating Detail | Gold flash over Nickel underplate, Tin over Copper underplate on IDC area |
| Voltage Rating | 250 VAC max |
| Operating Temperature | -65...+125 |
