To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | DB25-PA-M2-BL |
| Description | D-Sub Connector; D-Sub; 25-pos; Plug, Male Pins; Through Hole, Flush Mount |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

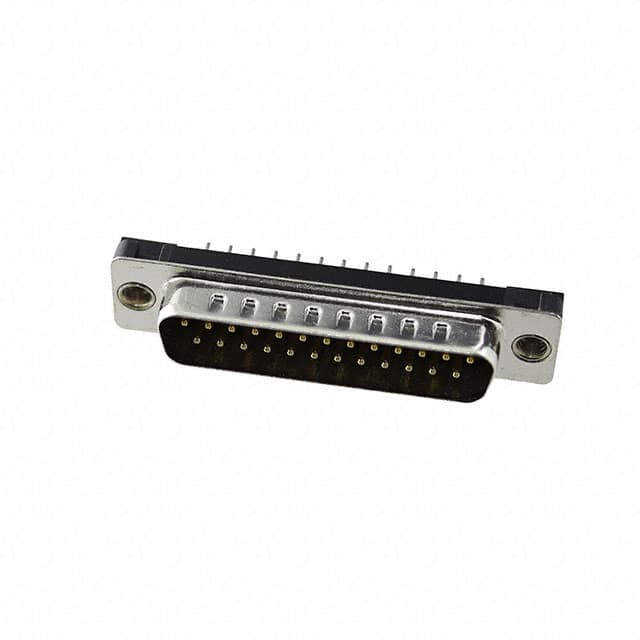

The Adam Tech DB25-PA-M2-BL is a 25-position D-Sub connector, plug, male pins, shell size B (DB-25). Termination: solder. Mounting: through hole, flush mount. Mounting hardware: #4-40 threaded mounting holes.
Insulator: PBT, glass reinforced, rated UL 94V-0; color: black. Contacts: copper alloy, gold flash over nickel underplate overall. Shell: Steel, Tin or Zinc plated.
Current rating: 1 A max. Voltage rating: 250 VAC max. Operating temperature -65 °C to +125 °C.
| Category | |
| Manufacturer | Adam Tech |
| Gender | Plug, Male Pins |
| Connector Style | D-Sub |
| Number of Positions | 25 |
| Mounting Type | Through Hole, Flush Mount |
| Flange Feature | #4-40 Threaded mounting holes |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin or Zinc plated |
| Shell Size, Connector Layout | B (DB-25) |
| Current Rating (A) | 1 A max |
| Insulator Material | PBT, glass reinforced, rated UL 94V-0; color: black |
| Contact Material | Copper alloy |
| Plating Detail | Gold flash over Nickel underplate overall |
| Voltage Rating | 250 VAC max |
| Operating Temperature | -65...+125 |
