To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | DA15-PF-M1-HT |
| Description | D-Sub Connector; D-Sub; 15-pos; Plug, Male Pins; Free Hanging (In-Line); IDC |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

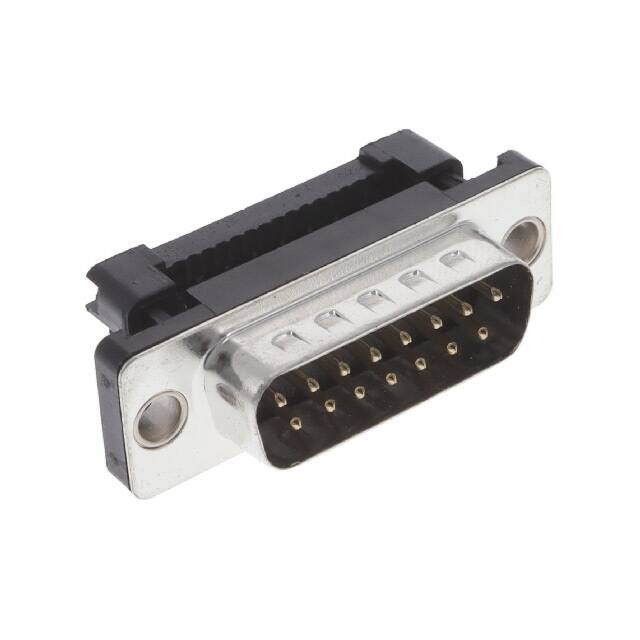

The Adam Tech DA15-PF-M1-HT is a 15-position D-Sub connector, plug, male pins, shell size A (DA-15). Termination: IDC. Mounting: free hanging (In-Line).
Insulator: PBT, glass reinforced, rated UL 94V-0; color: black. Contacts: phosphor bronze, gold flash over nickel underplate on mating area, tin over copper underplate on IDC area. Shell: Steel, Tin or Zinc plated.
Current rating: 3 A max. Voltage rating: 250 VAC max. Operating temperature -55 °C to +125 °C.
| Category | |
| Manufacturer | Adam Tech |
| Gender | Plug, Male Pins |
| Connector Style | D-Sub |
| Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | IDC |
| Shell Material, Finish | Steel, Tin or Zinc plated |
| Shell Size, Connector Layout | A (DA-15) |
| Current Rating (A) | 3 A max |
| Insulator Material | PBT, glass reinforced, rated UL 94V-0; color: black |
| Contact Material | Phosphor Bronze |
| Plating Detail | Gold Flash over Nickel underplate on mating area, Tin over Copper underplate on IDC area |
| Voltage Rating | 250 VAC max |
| Operating Temperature | -55...+125 |
