To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | DMH-04-S1 |
| Description | Connector Housing; 4-position; .165" [4.20mm]; 7A AC/DC |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

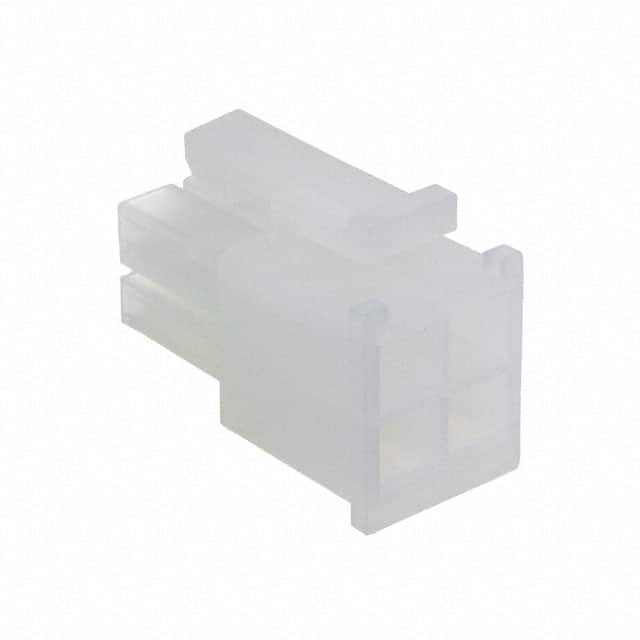

The Adam Tech DMH-04-S1 is a 4-position, single-row, 4.2 mm (.165 in) pitch crimp wire housing. It takes crimp contacts, sold separately.
Insulator: Nylon 66, rated UL 94V-2; color: natural.
Current rating: 7A AC/DC. Voltage rating: 600V AC / DC max. Operating temperature -40 °C to +105 °C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Connector Type | Wire housing |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | .165" [4.20mm] |
| Termination | Crimp (contacts sold separately) |
| Insulator Material | Nylon 66, rated UL 94V-2; color: natural |
| Current Rating | 7A AC/DC |
| Voltage Rating | 600V AC / DC max. |
| Operating Temperature | -40...+105 |
| Approvals | UL Recognized File no. E224053 |
