| Manufacturer | Adam Tech |
| Manufacturer Product Number | DMF-04-W-SG |
| Description | Connector Housing; 4-position; .165" [4.20mm]; 9 A max. |
| Datasheet | Download Datasheet |

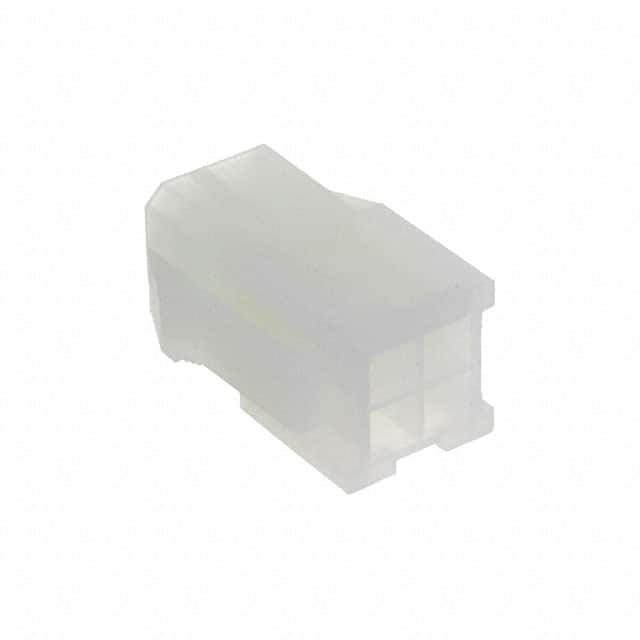

The Adam Tech DMF-04-W-SG is a 4-position, dual-row, 4.2 mm (.165 in) pitch crimp wire housing. It takes crimp contacts, sold separately.
Insulator: Nylon 66, rated UL 94V-2; color: natural.
Current rating: 9 A max. Voltage rating: 600 VAC max. Operating temperature -40 °C to +105 °C.
Current by wire size, from the Adam Tech drawing: Wire Size AWG | Positions 2 | 4, 6 | 8, 10 | 12~24; #18 | 9A | 8A | 7A | 6A; #20 | 7A | 6A | 5A | 5A; #22 | 5A | 4A | 4A | 4A; #24 | 4A | 3A | 3A | 3A.
Approvals: UL Recognized File no. E224053.
