To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | DMF-02-S-V0-GW |
| Description | Connector Housing; 2-position; .165" [4.20mm]; 9 A max. |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

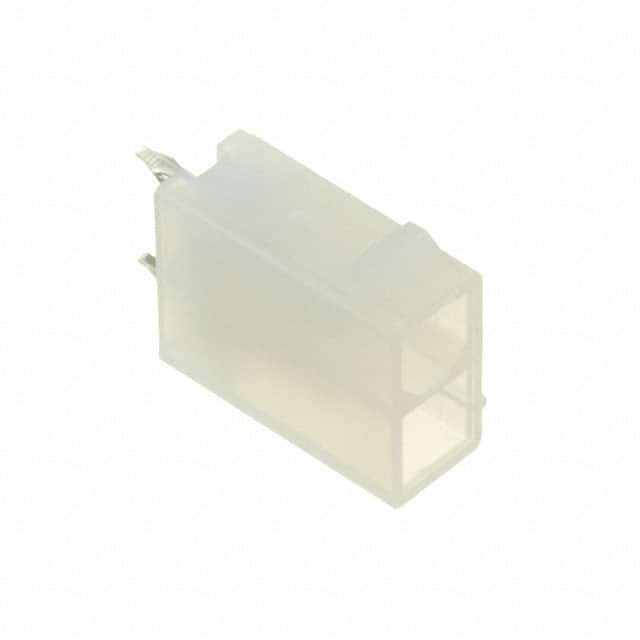

The Adam Tech DMF-02-S-V0-GW is a 2-position, dual-row, 4.2 mm (.165 in) pitch crimp wire housing. It takes crimp contacts, sold separately.
Insulator: Nylon 66, rated UL 94V-0, Glow wire compliant GWFI rating 960°C per IEC 60695-2-12 RTI rating 130 (Elec), 105 (Imp), 120 (Str); color: white.
Current rating: 9 A max. Voltage rating: 600V AC, DC (R.M.S). Operating temperature -40 °C to +105 °C.
Current by wire size, from the Adam Tech drawing: Wire Size AWG | Rated Voltage | CIRCUITS 2 | 4~6 | 8~10 | 12~24; #18 | 250V | 9 A | 8 A | 7 A | 6 A; #20 | 250V | 7 A | 6 A | 5 A | 5 A; #22 | 250V | 5 A | 4 A | 4 A | 4 A; #24 | 250V | 4 A | 3 A | 3 A | 3 A.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Connector Type | Wire housing |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Pitch | .165" [4.20mm] |
| Termination | Crimp (contacts sold separately) |
| Insulator Material | Nylon 66, rated UL 94V-0, Glow wire compliant GWFI rating 960°C per IEC 60695-2-12 RTI rating 130 (Elec), 105 (Imp), 120 (Str); color: white |
| Current Rating | 9 A max. |
| Current by Wire Size | Wire Size AWG | Rated Voltage | CIRCUITS 2 | 4~6 | 8~10 | 12~24; #18 | 250V | 9 A | 8 A | 7 A | 6 A; #20 | 250V | 7 A | 6 A | 5 A | 5 A; #22 | 250V | 5 A | 4 A | 4 A | 4 A; #24 | 250V | 4 A | 3 A | 3 A | 3 A |
| Voltage Rating | 600V AC, DC (R.M.S) |
| Operating Temperature | -40...+105 |
| Approvals | UL Recognized File no. E224053 |
