To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | RF2-156-T-00-50-G |
| Description | RF Connector; SMA; Jack, Female Socket; Panel Mount, Bulkhead; 50 Ohms |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

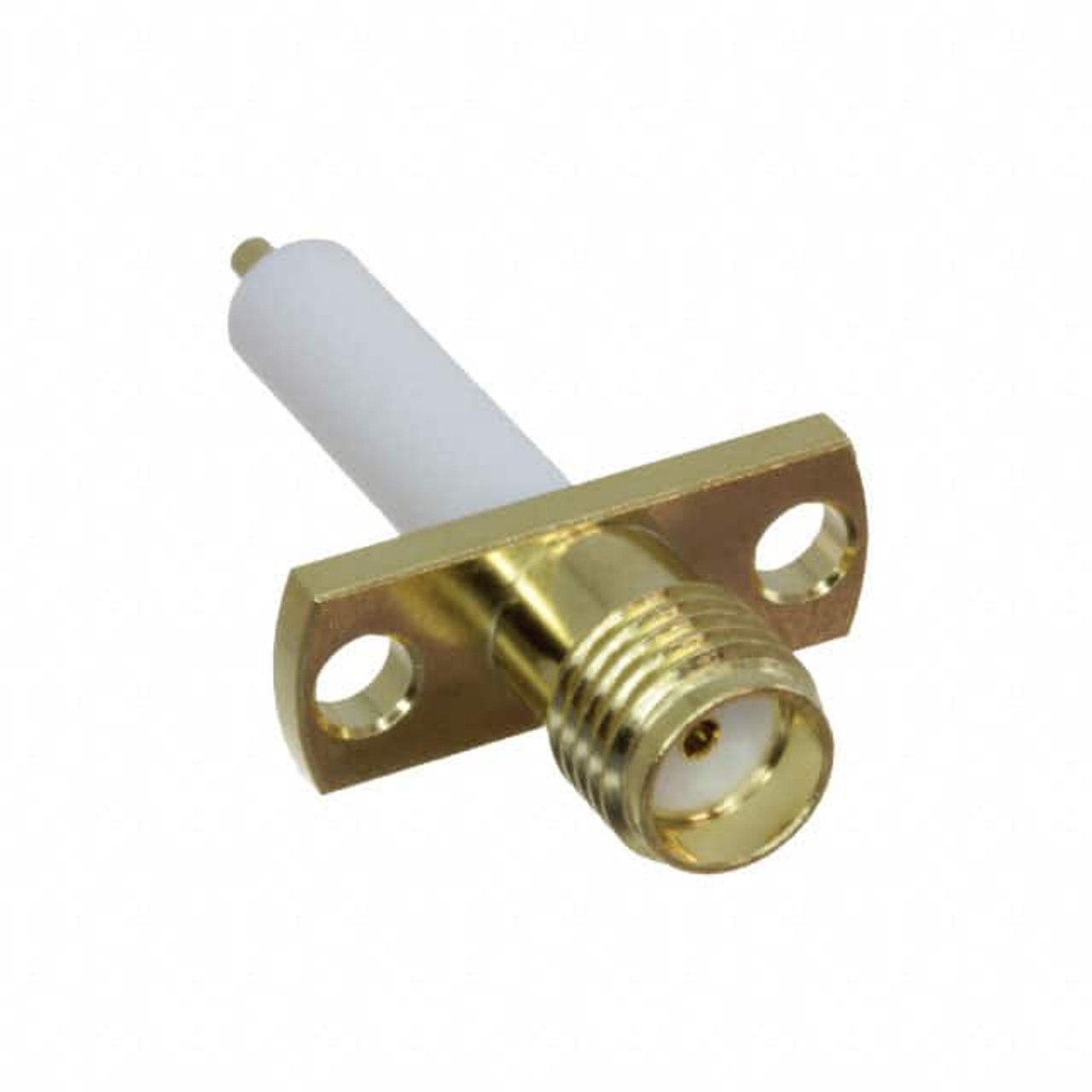

The Adam Tech RF2-156-T-00-50-G is a 50 ohm SMA jack (female socket). Orientation: straight. Mounting: panel mount, bulkhead. Frequency range: DC-18 GHz. VSWR: 1.2 max. Features: gold plated body and contact.
Body: Brass, gold finish.
Durability: 500 mating cycles.
Contacts: brass, gold finish. Insulator: PTFE (Teflon).
Voltage rating: 335 VOLTS max. Operating temperature -65°C ~ 165°C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Connector Type | SMA |
| Frequency Range | DC-18 GHz |
| Impedance | 50 Ohms |
| VSWR | 1.2 max |
| Body Material | Brass, gold finish |
| Orientation | Straight |
| Gender | Jack, Female Socket |
| Mounting Type | Panel Mount, Bulkhead |
| Features | Gold Plated Body and Contact |
| Insulator Material | PTFE (Teflon) |
| Contact Material | Brass, gold finish |
| Voltage Rating | 335 VOLTS max. |
| Operating Temperature | -65°C ~ 165°C |
| Mating Cycles | 500 |
| Approvals | UL Recognized File no. E224053 |
