To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | MDJD-004-FS-RT |
| Description | Circular Connector; 4-position; Receptacle, Female Sockets; Through Hole, Right Angle |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

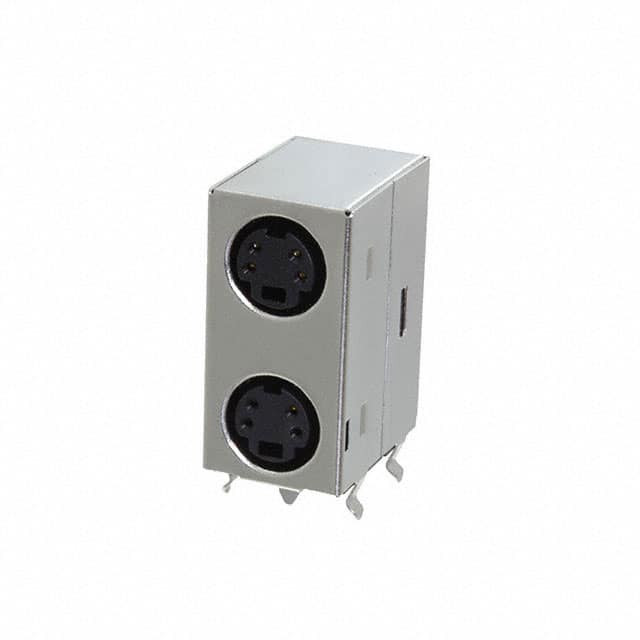

The Adam Tech MDJD-004-FS-RT is a 4-position mini-DIN receptacle with female sockets. Mounting: through hole, right angle. Termination: solder. Shielded. Body: plastic. Features: stacked 2, five sided shield.
Shell: Copper Alloy, Tin plated.
Durability: 5,000 mating cycles.
Contacts: phosphor bronze, gold over nickel underplate on contact area, tin over copper underplate on tails. Insulator: PBT, glass filled, rated UL 94V-0; color: black.
Current rating: 1 A max./2 A max. Voltage rating: 100 VAC/12 VDC max. Operating temperature -55°C ~ 85°C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Gender | Receptacle, Female Sockets |
| Number of Positions | 4 |
| Shell Size - Insert | Mini DIN |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Copper Alloy, Tin plated |
| Features | Stacked 2, Five Sided Shield |
| Shielding | Shielded |
| Current Rating (A) | 1 A max./2 A max. |
| Voltage Rating | 100 VAC/12 VDC max. |
| Operating Temperature | -55°C ~ 85°C |
| Insulator Material | PBT, glass filled, rated UL 94V-0; color: black |
| Contact Material | Phosphor Bronze |
| Plating Detail | Gold over Nickel underplate on contact area, Tin over Copper underplate on tails |
| Mating Cycles | 5000 |
| Approvals | UL Recognized File no. E224053 |
